DR-06

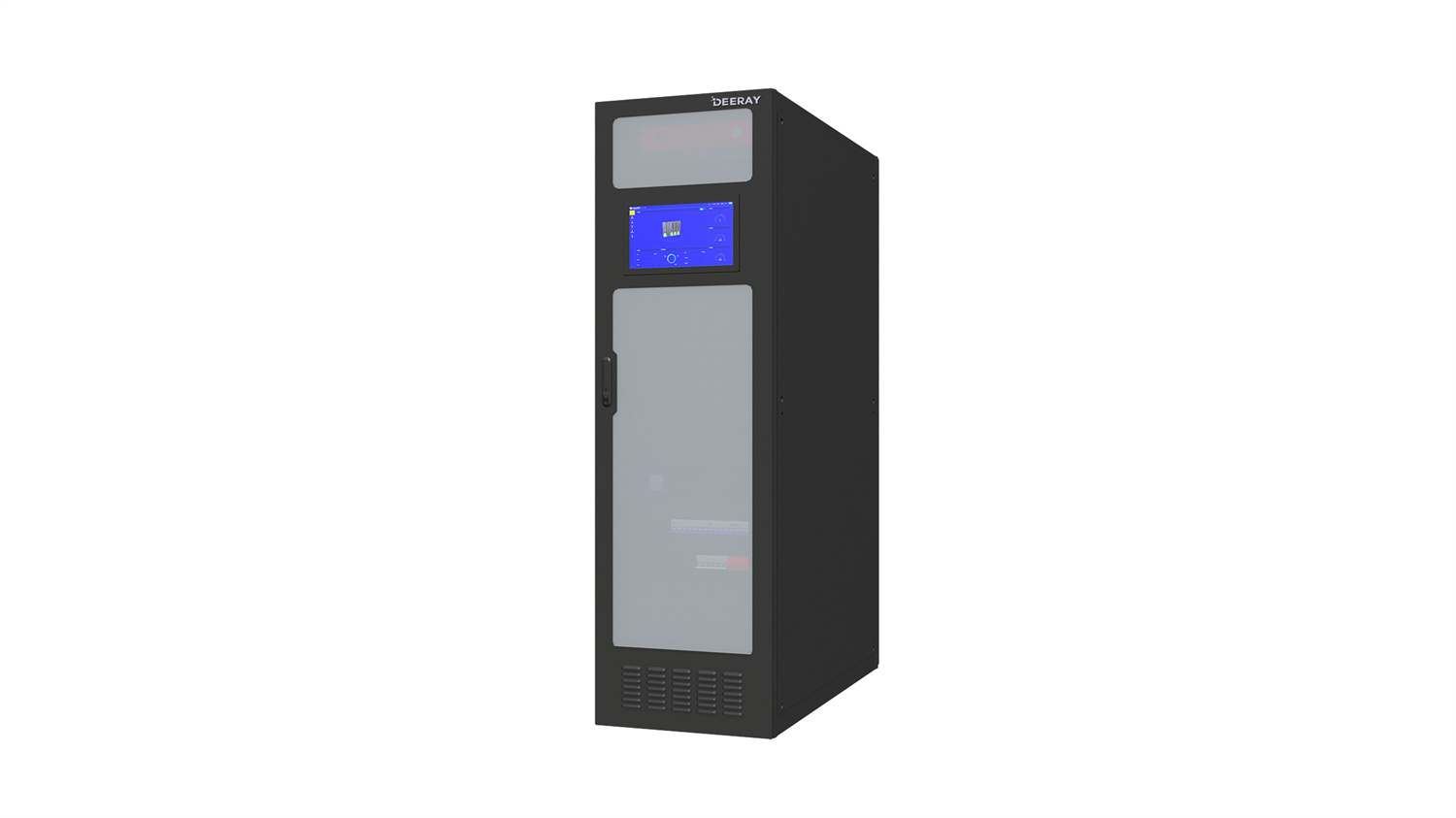

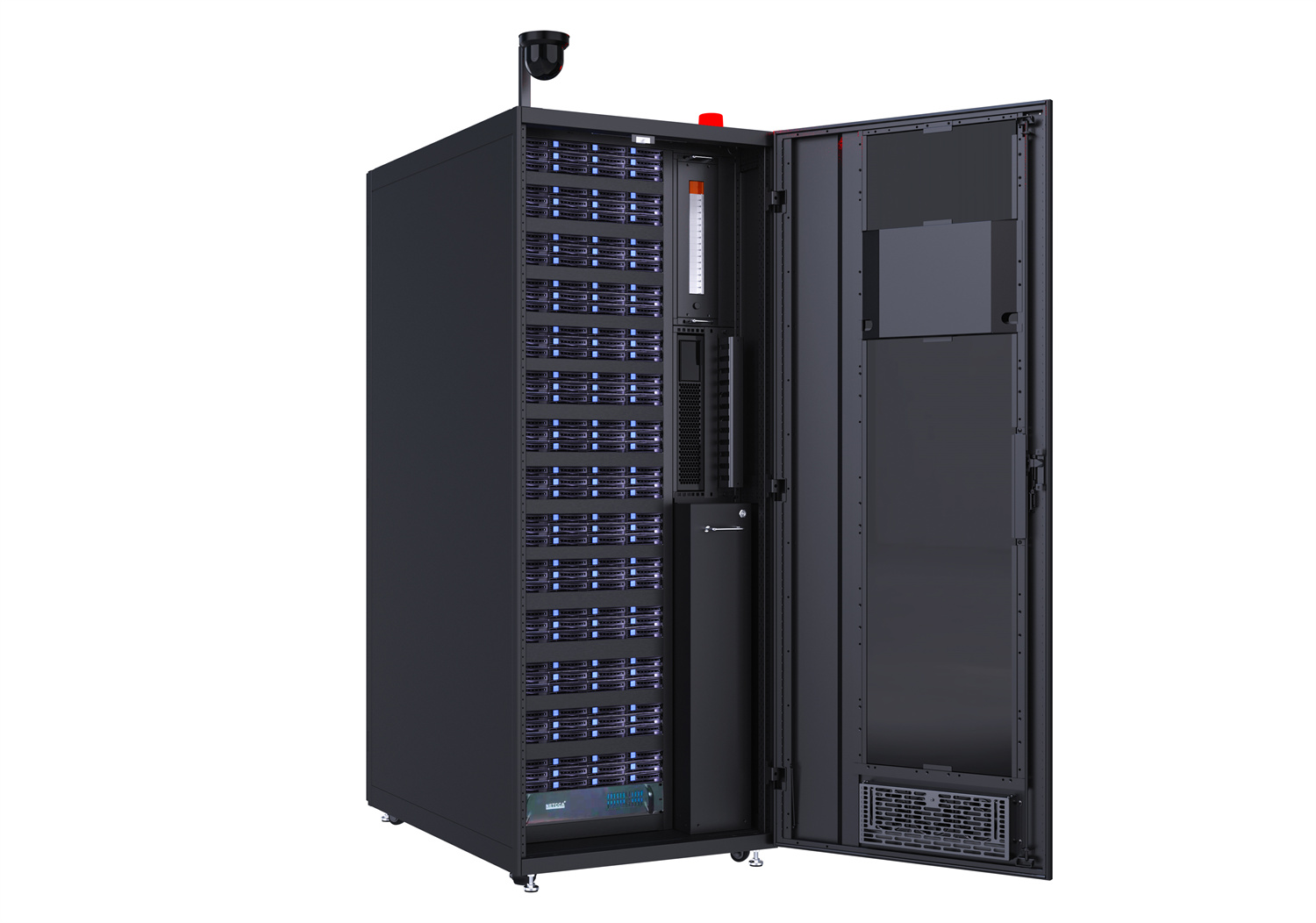

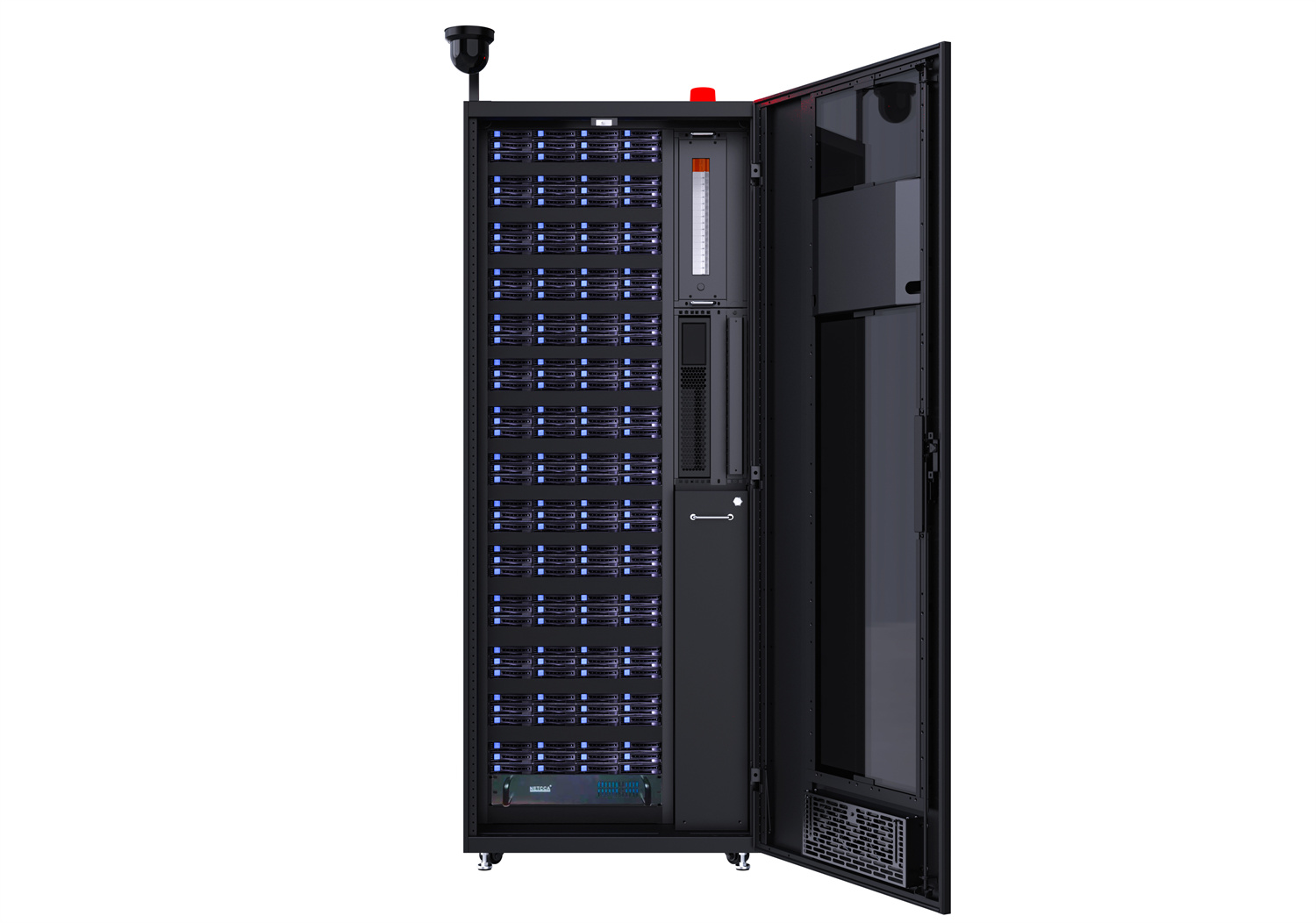

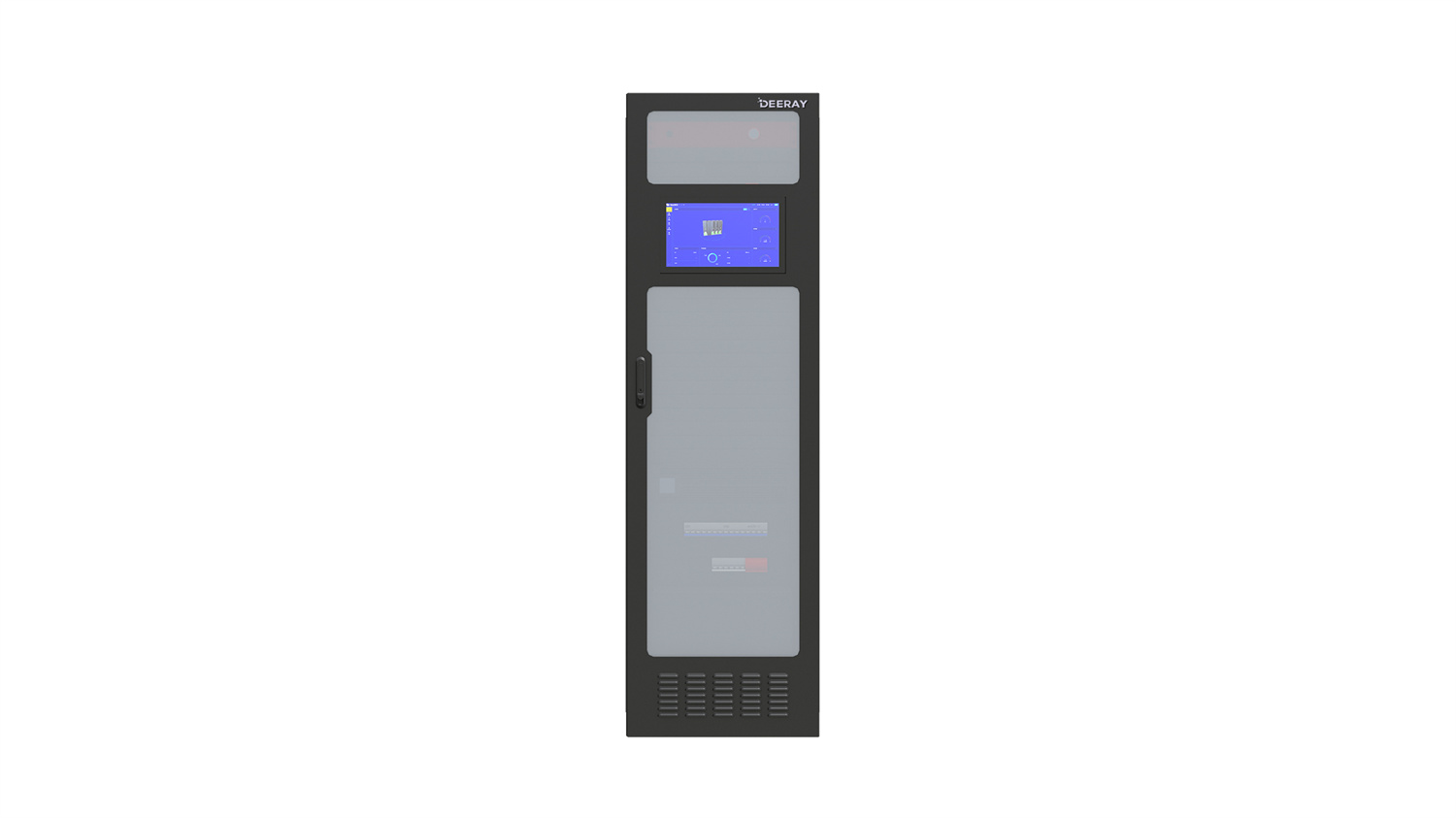

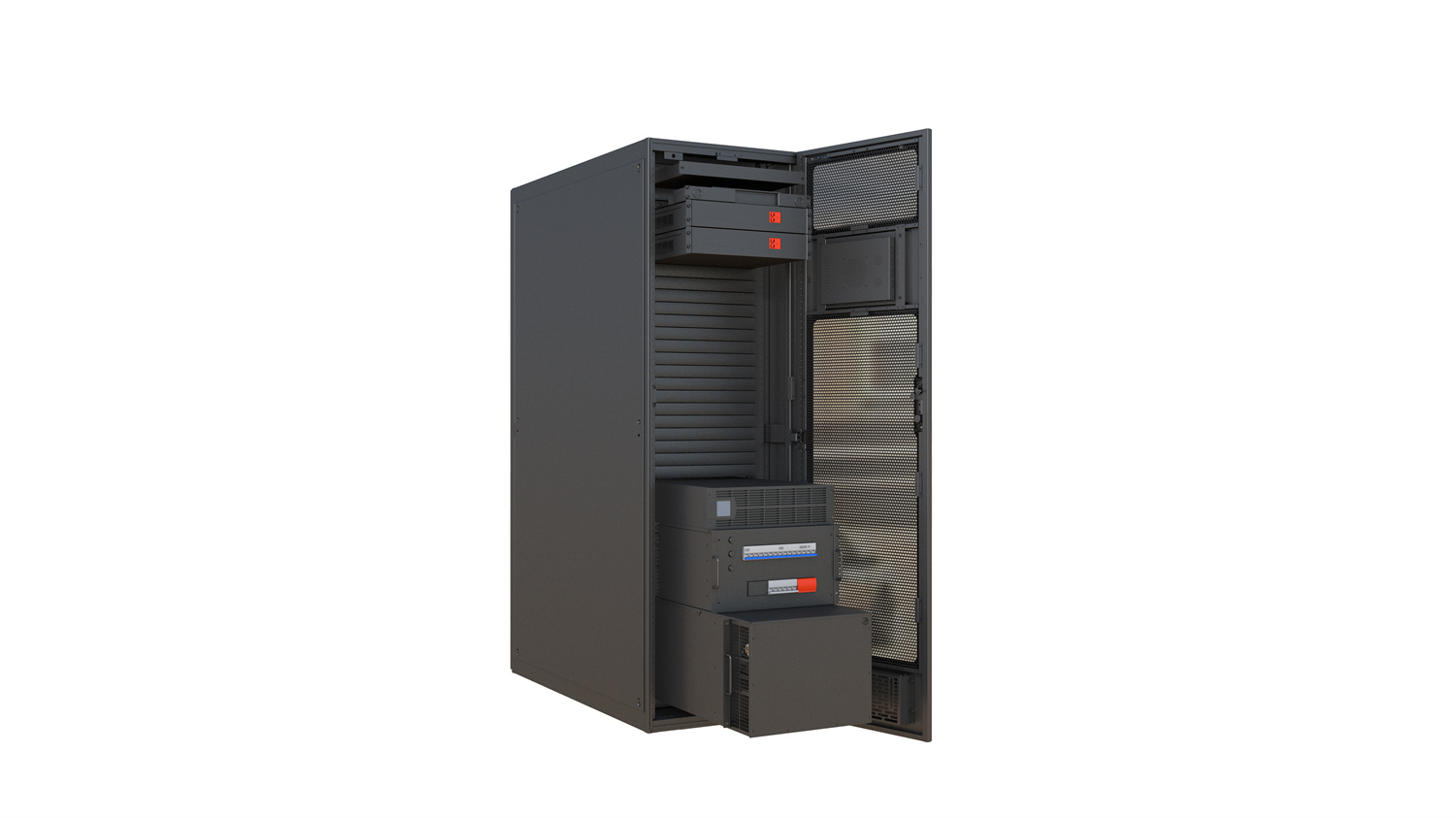

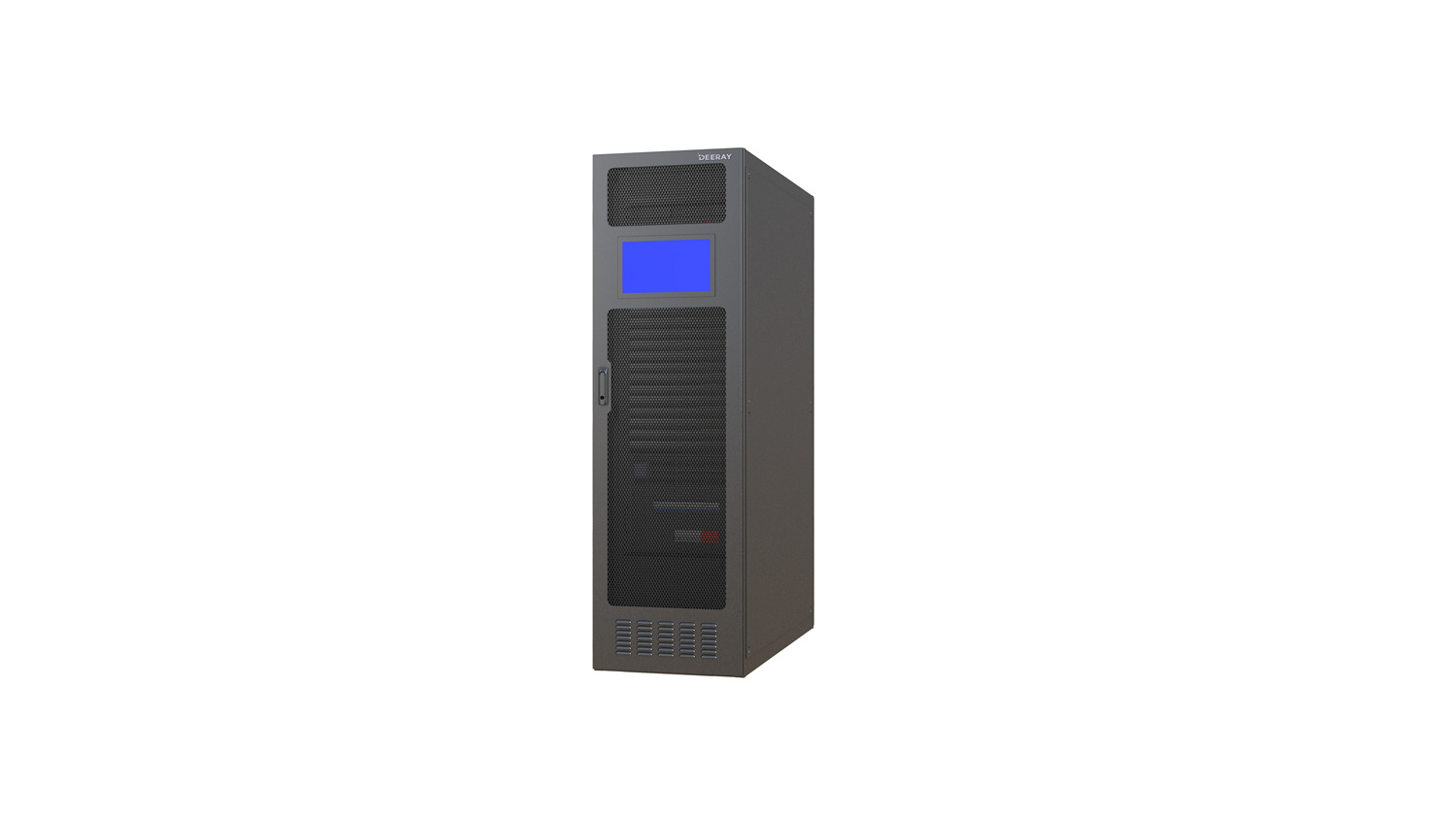

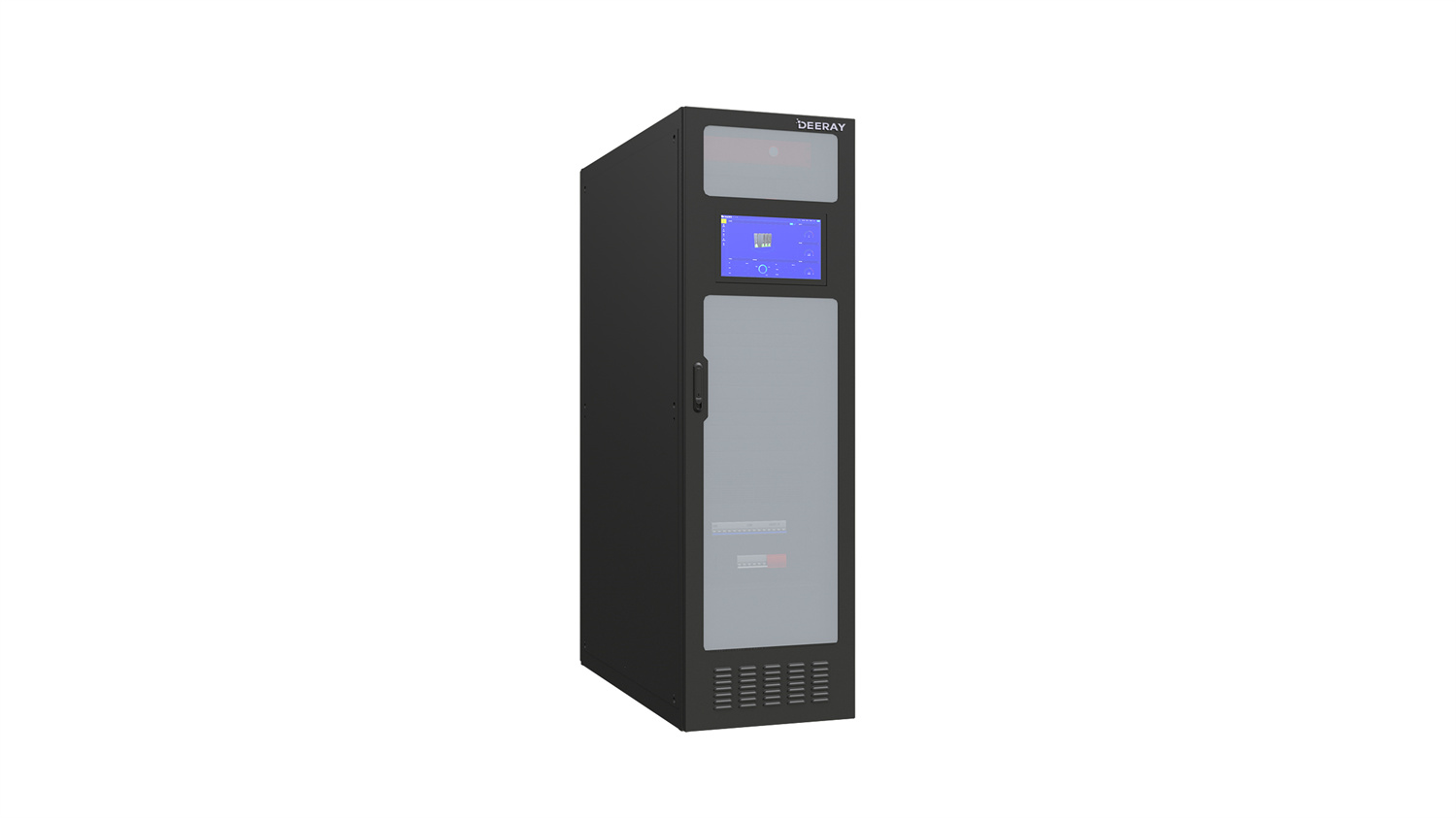

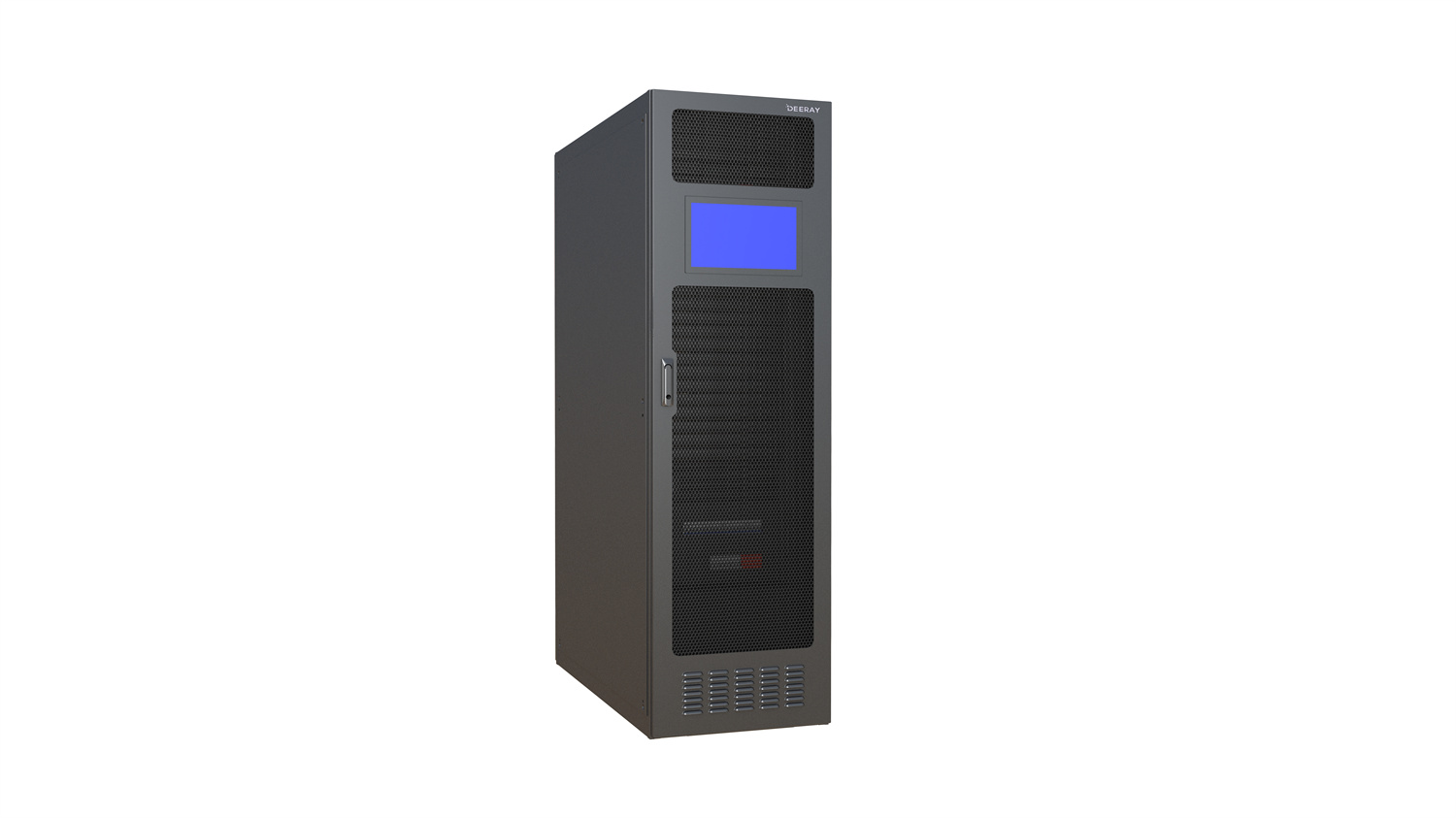

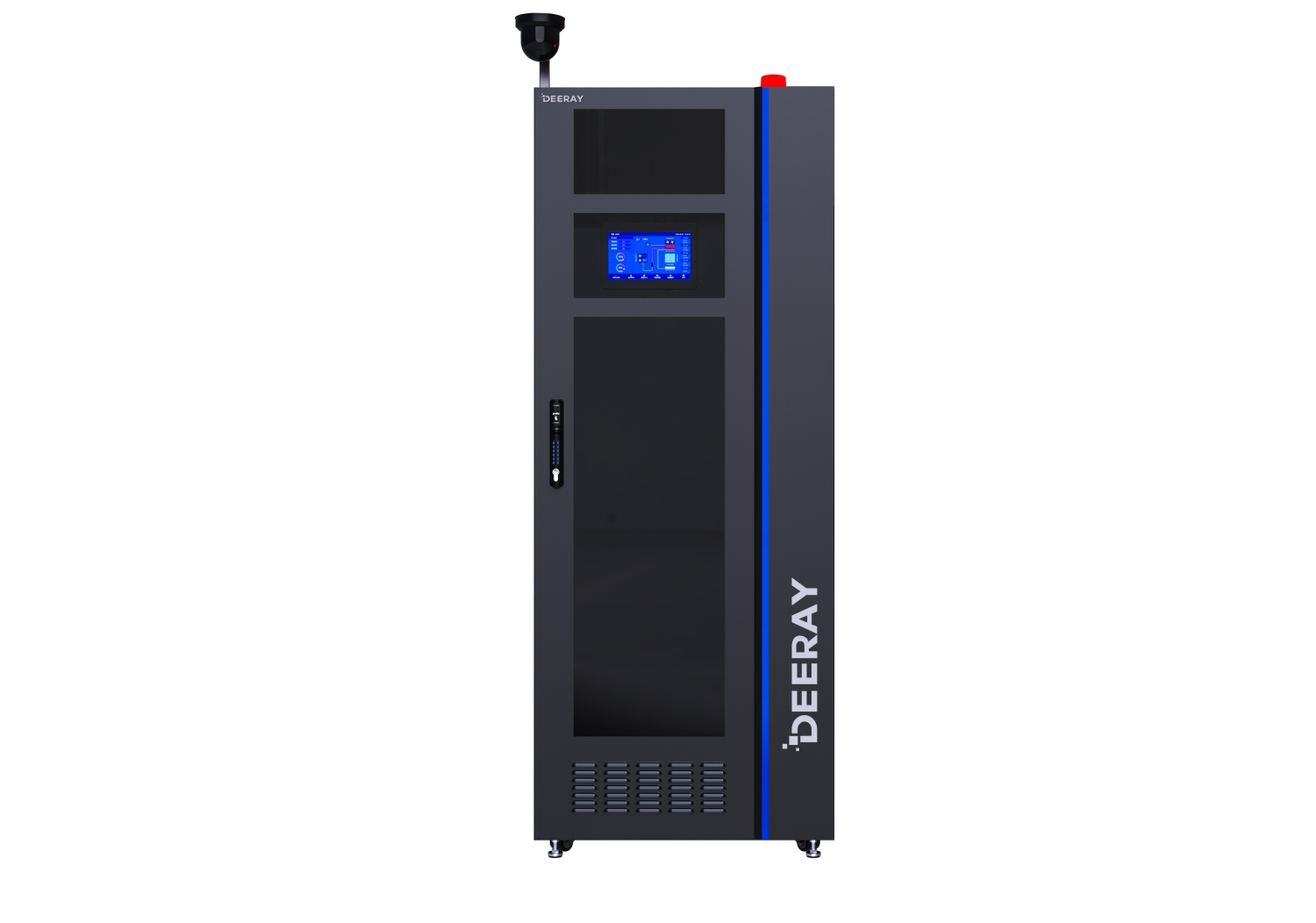

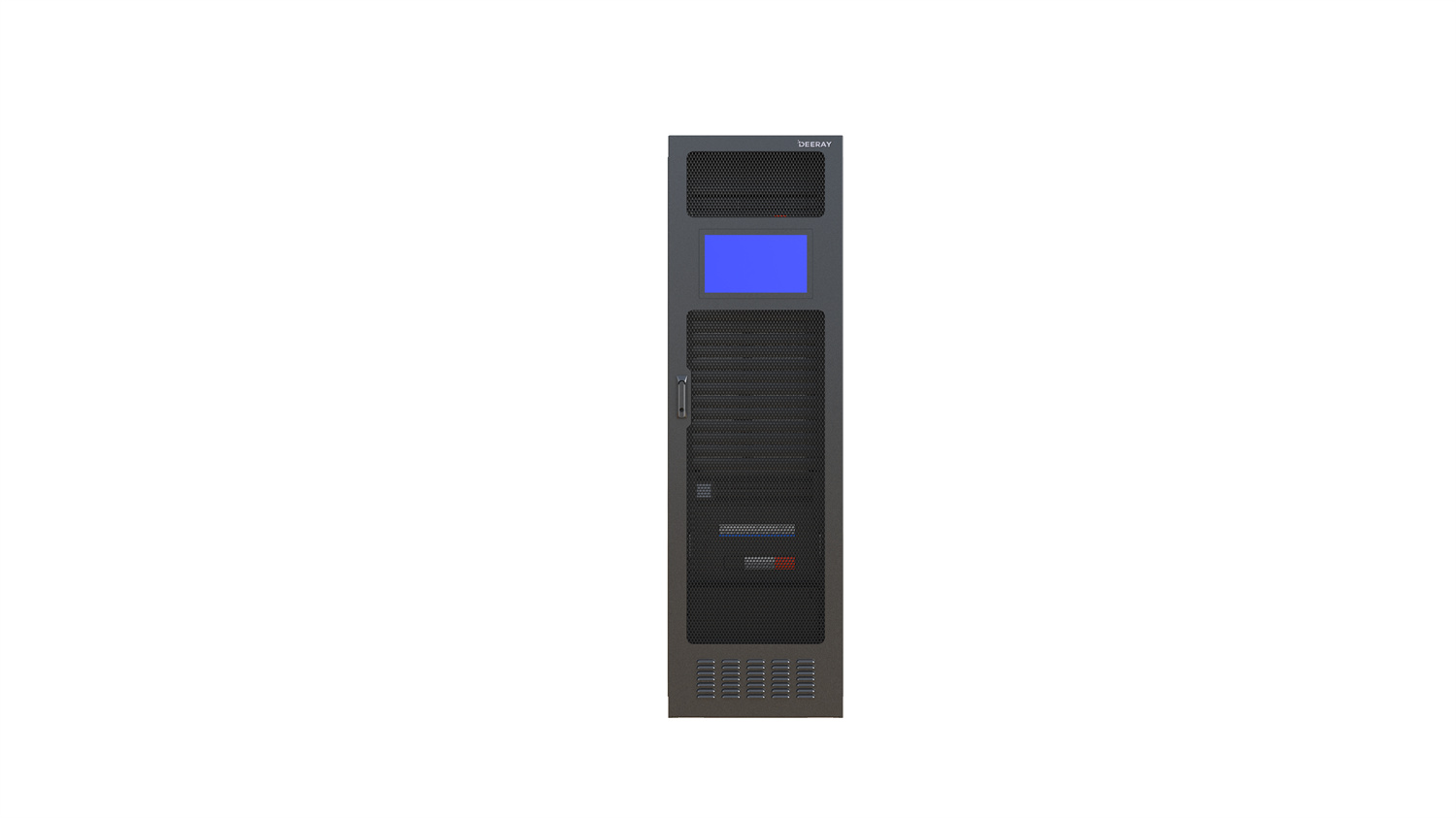

Deeray series integrated cabinet solution integrates UPS, air conditioner, power distribution module, power and environment monitoring system, temperature and humidity detection, light and access control in a standard 19-inch server cabinet. All equipment is pre-installed and pre-commissioned in the factory. The on-site installation is easy and convenient, which can realize rapid deployment, occupy less area, and comes with remote web interface monitoring function, which can realize remote operation and maintenance of a site.

◆ Integrated overall design, built-in microenvironment system;

◆ 800mm wide body structure, the U position space of the whole machine cabinet is up to 37U+1U;

◆ Equipped with efficient UPS system, the efficiency is up to 95%;

◆ The energy efficiency ratio is up to 3.6, and the refrigeration operation cost can be reduced by 15%;

◆ CFD air flow simulation, cold and hot dual channel isolation in the cabinet;

◆ It is equipped with an intelligent large screen management system to display dynamic data application scenarios in real time.

Download: PDF JPG

Features
Specification Details

Reliable and safety

• All parts follow international standard，reliable quality of production.

• Pre-manufactured, pre-assembled, Pre-debugged, ensure the safety and reliability of product operation.

• Self-contained system of single cabinet, suit to all kind of complex condition (Dusty, Limited space,No air condition).

• Overall design , overall delivery , avoid design issue of system.

• Intelligent bullet door system retard channel over- temperature , allow time for data backup.

• Integrated intelligent monitoring ensure the safe and reliable operation of system.

Energy-eﬃcient

• Closer refrigeration, efﬁcient power supply， Single cabinet average PUE≈ 1.50.

• Power distribution, UPS, monitoring, refrigeration, multi- cabinet integration which save more space.

• No design and no wiring required , remote and unattended operation which will save TCO.

Intelligent management

• The monitor system is open and expandable, friendly interface.

• Local, remote WEB access interface and SMS are supported.

Simple and convenient

• Distribution modular design , handy installation and maintenance.

• Rack model internal air conditioner, easy maintenance .

• No special decoration required, installation and debugging cycle only 3 hours.

• Single cabinet system, expand to 2-3 cabinets is available.

DR-06(3KVA) Configuration List
No.	Item	Component Name	Specification	Size	Single Set Usage	Unit	Total Required Sets
Cabinet System
1	Sealed Cabinet	Cabinet	Sheet metal frame cabinet 1 top cover plate 1 (bottom wiring, top plate opening) angle gauge4 (42U) depth support2 Windshield components 1 Bottom Cover 1 4 * load-bearing pyramids/set	600×2000×1200	1	Set	1
2		Single Front Glass Door	Single-layer Front glass door + Class A anti-flame PVC colorless transparent panel door (reserved display installation position), equipped with welding reinforcement. three-way door access control with spring * 1 electric lock switch Button * 2 Wire routing beam×1 LCD display screen cover*1	600×2000×1.5×5mm （Tempered Glass）	1	Piece
3		Rear Double-Sided Door	Equipped with welding reinforcement, electric lock switch button with door spring * 2	600×2000	1	Set
4		Side Cover	Cabinet Side Cover	1200×2000	1	Side
5		Cooling Tunnel Component Set	Windsheild, Seals and etc.	600×2000	1	Set
6		Lighting Components	Lighting Components with Switches * 2	600W	1	Set
7		Ambient Light	Blue	2000H	1	Piece
8		Bottom Cover	Cabinet Bottom Cover with Drainage Holes	600×1200×1.2	1	Set
9		Insulation Cotton	Thermal insulation cotton (200mm cooling Tunnel ) + sheet metal guard board	200×2000	2	Piece
10		Cable Management Board	Vertical Cable Management board	100×2000	2	Piece
11		Wheels	4 pieces/set		1	Set
12		PDU Holder	2 Pieces/set		2	Piece
13		Side Cover	Side Cover for internal Structure	2000×1200×1.2	2	Side
14		Blind Cover	1U Blind Cover	1U	10	Piece
15		Load Bearing Plate	Maximum 150Kg	1200D	1	Piece
16		L Shape Holder	2 * L Shape Holder/per set	1200D	3	Sets
17		Ground copper bar		600W	1	Piece
Power Supply & Distributions
1	Power Distribution Cabinet	Single Phase（Delexi Brand） AC Power Input：63A/2P Surge Arrestor：20KA/2P（L+N） Surge Arrestor Breaker：25A/2P Maintenance Bypass Breaker：63A/2P UPS Input Breaker：50A/1P UPS Output Breaker：50A/1P Air-Conditioners Breaker：10A/1P PDU1 Breaker：32A/1P PDU2 Breaker：32A/1P DC Output Breaker：10A/1P Preset for future use: 1--4 10A/1P	Rack-mounted intelligent single-phase input/one-way output power distribution function: 1. 8 sets detection customization and expansion available. 2. Detection of Input voltage, current, active power and power factor, load factor, harmonic Distortions 3. Detection of output switch voltage, current, power, load rate, electric energy and power factor 4. Detection of input and output switch status 5. Surge protection alarm detection 6. RS485, SNMP dry contacts sensors (such as temperature and humidity, smoke sensor, door sensor) 7. Buzzer and LED indicator 8. DC power supply 12V/8.5A, 2 outputs	440×540×132mm/3U	1	Piece	1
2	DC Power Distribution	16 Outlet DC Power Source Distribution		440×200×44mm/1U	1	Piece	1
3	DC Power	220Vac/12vdc/30A/360W	AC-DC：220Vac/12Vdc		1	Piece	1
4	PDU	Vertical Installation	Central Monitoring Intelligent PDU，16 Ports（C13），Metal Casing	1400×56×47mm	2	Piece	1
5	UPS	Uninterruptible Power Supply	Online High Frequency 3KVA UPS with built-in Batteries, gives about 3-5 minutes backup time at full load. Optional for longer backup time with external battery connection.	2U	1	Piece	1
Cooling System
1	Air-Conditioners	Rack Mount Air Cooling Air-conditioners-3.5kW	3.5kW precision air conditioner, rack-mounted, single cooling type, including outdoor unit. Dynamic adjustment of the refrigeration capacity of the inverter compressor to avoid condensation, automatic adjustment of the air volume of the internal and external EC fans, built-in refrigerant pressure and temperature sensor, and electronic expansion valve.		1	Piece	1
Environmental Monitoring System
1	Environmental Monitoring System	Environmental Monitoring System Host Machine	System has built-in SNMP-Link Monitoring software: SNMP-Link can manage the LAN data center infrastructure. Not only can the equipment network equipment connection and management be realized through the SNMP protocol, but also the equipment can be connected through RS485 or CANbus, and the expansion is very flexible. If allowed by the customer's network, remote access and management can be realized. (1) Power input plug C14 (2) IN1-8 input level detection (3) OUT1-4 dry contact output signal (4) TH1/2 two-way digital temperature and humidity sensor interface (5) 4 * RS485/232 interfaces (6) CANBUS interface (7) Network interface (8) SD memory port (built-in SanDisk card 8G memory high-speed TF card memory card) (9) USB peripheral power supply interface (10) Working indicator	440×80×44mm/1U	1	Piece	1
2	LCD Display	10 inch Color LCD Touch Screen		235×150×20mm	1	Piece	1
3	Network Switch	16 Port Network Switch		440×200×44mm/2U	1	Piece	1
4	Wifi Router	Provide Data Transfer between Monitoring System to LCD Screen			1	Piece	1
5	Temperature & Humidity Sensors	RS 485 Connection			1	Piece	1
6	Smoke Sensors				1	Piece	1
7	Water Leakage Sensors	Zone Sensing Sensor Sets with detection cables , 2.5m			1	Piece	1
Others
	Auxiliary material				1	Set	1
Optional Accessories （Price not included)
1	STS	Static Transfer Switch			1	Piece	1
2	Fire Extinguisher Module	Fire Extinguisher Module	heptafluoropropane	440×650×132mm/3U	1	Piece	1
