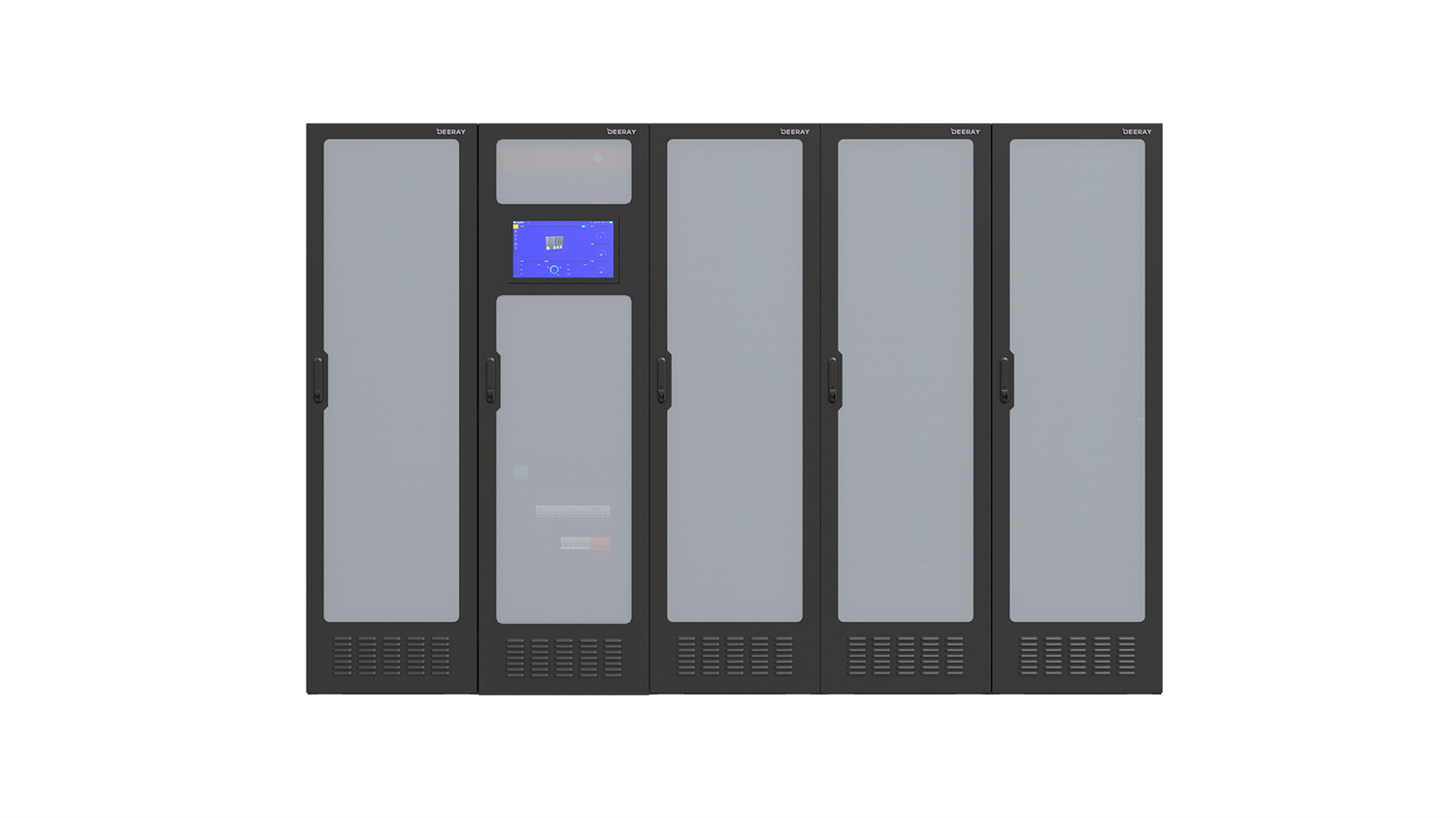

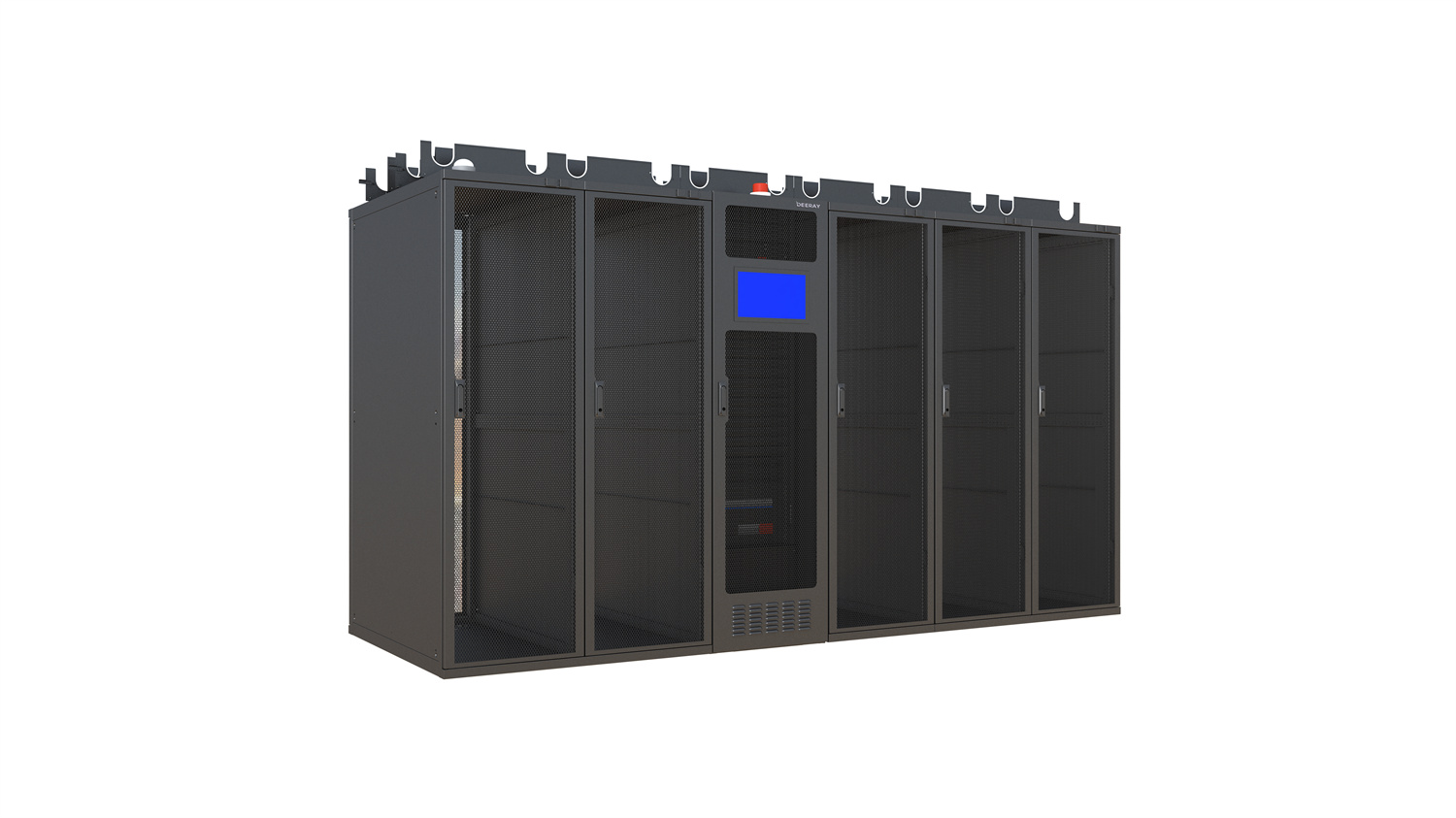

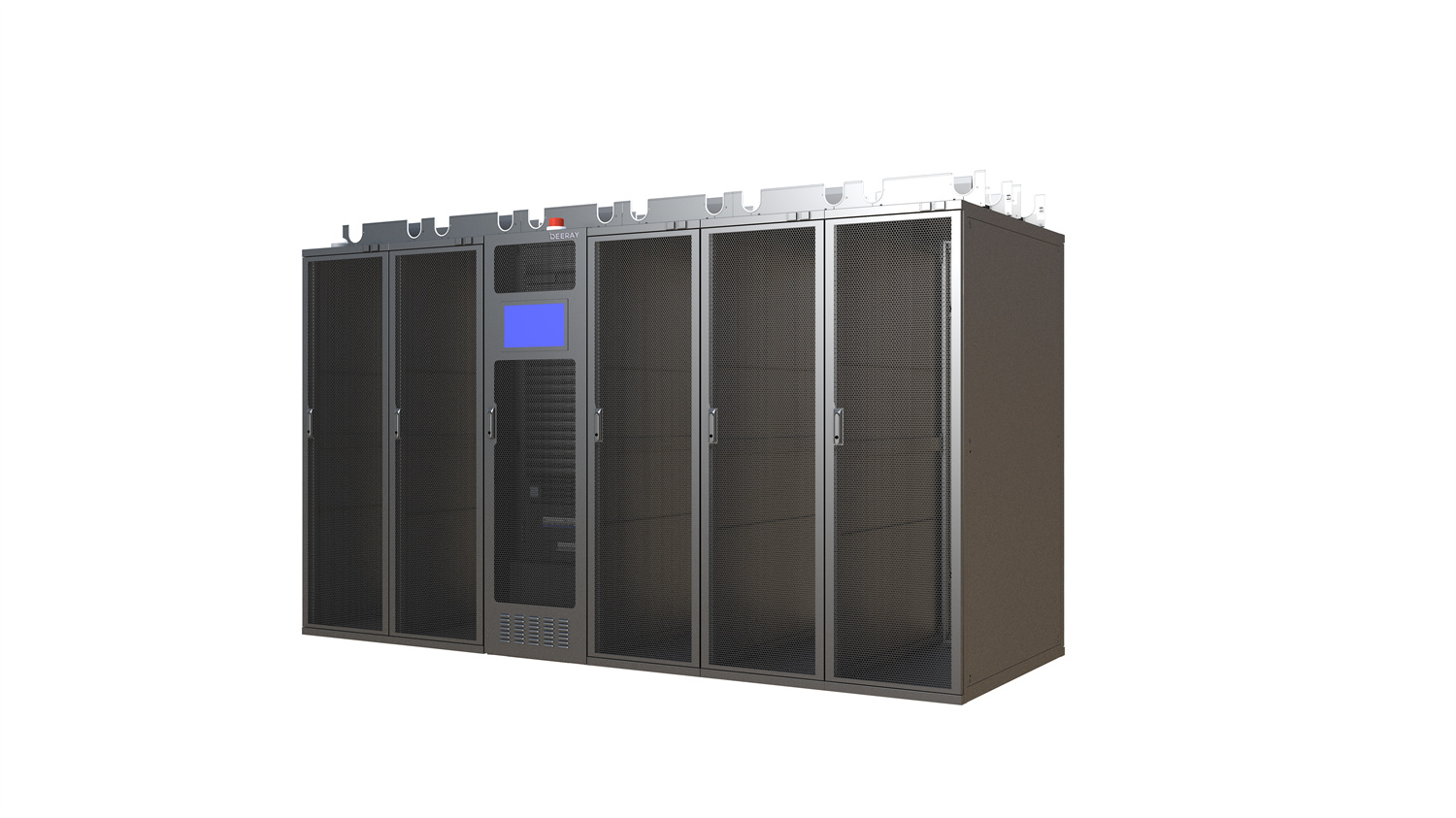

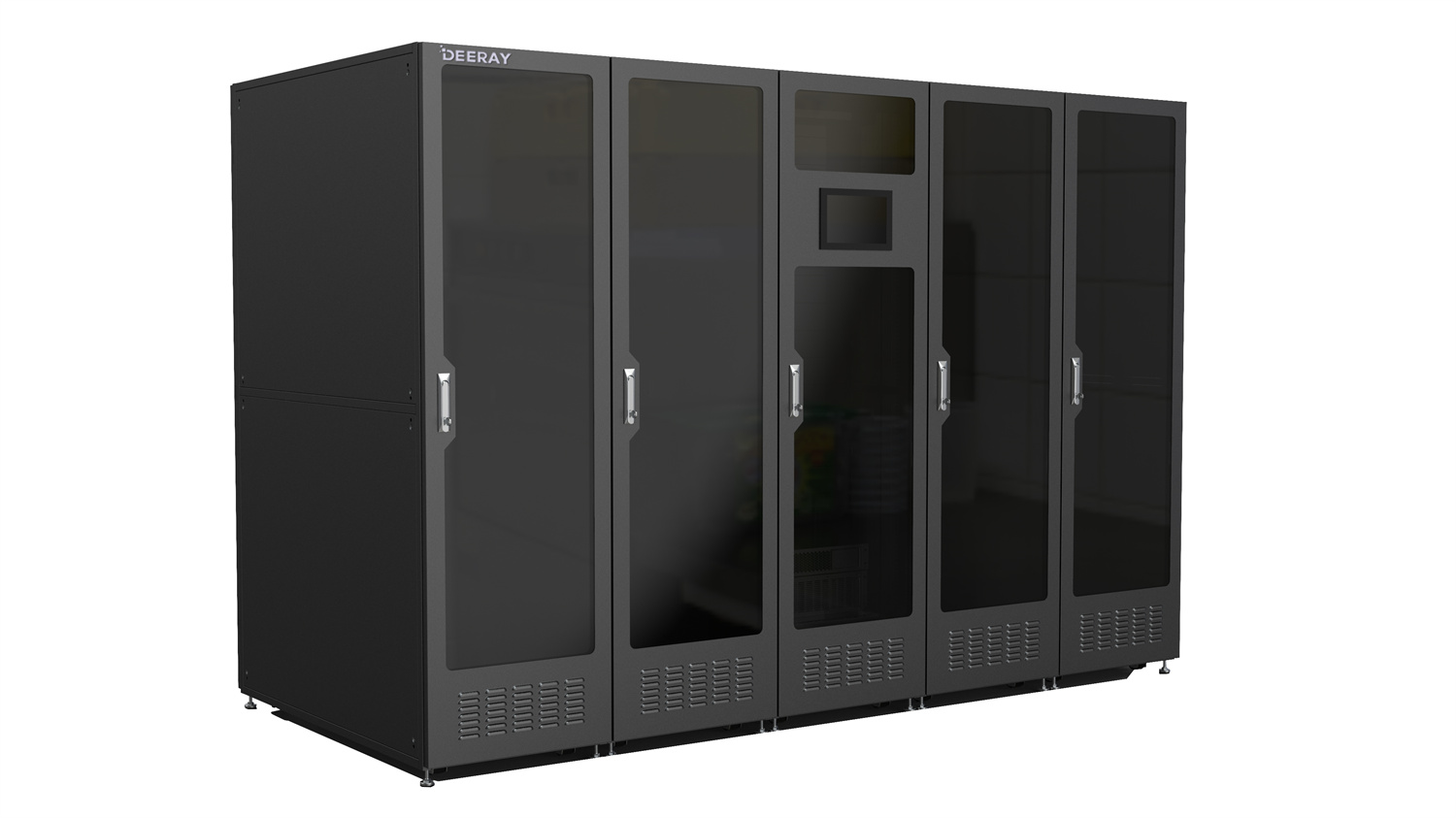

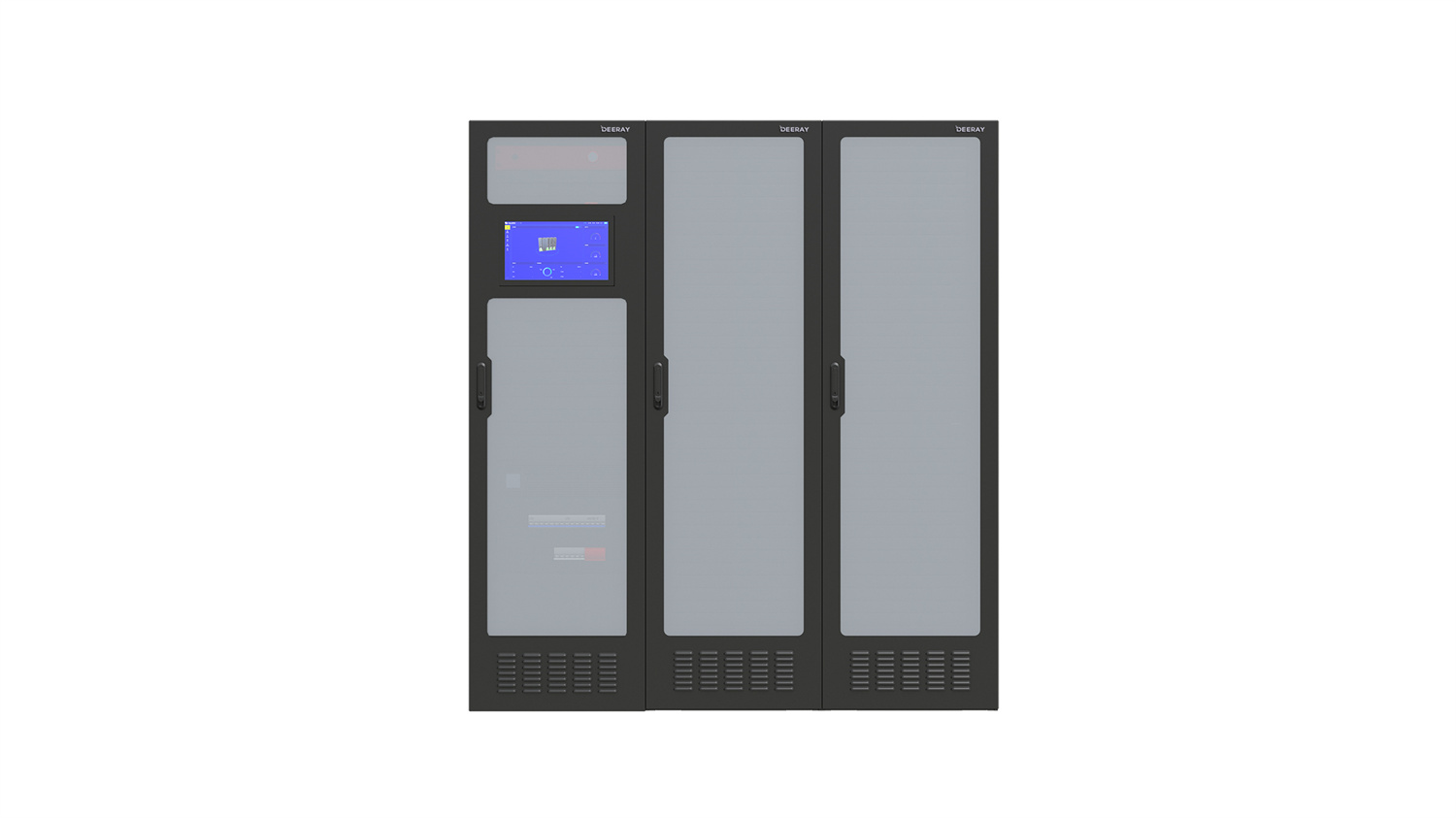

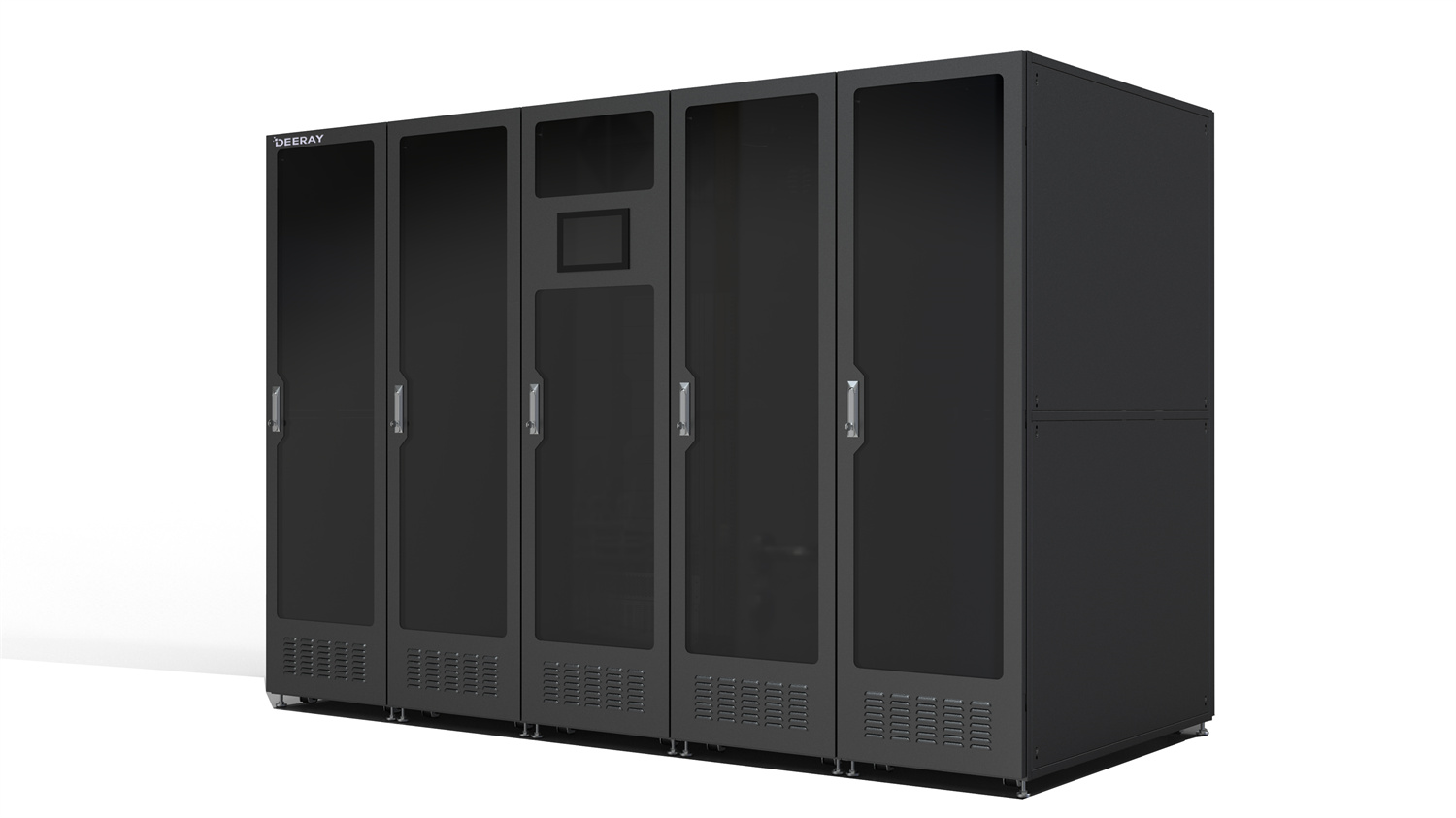

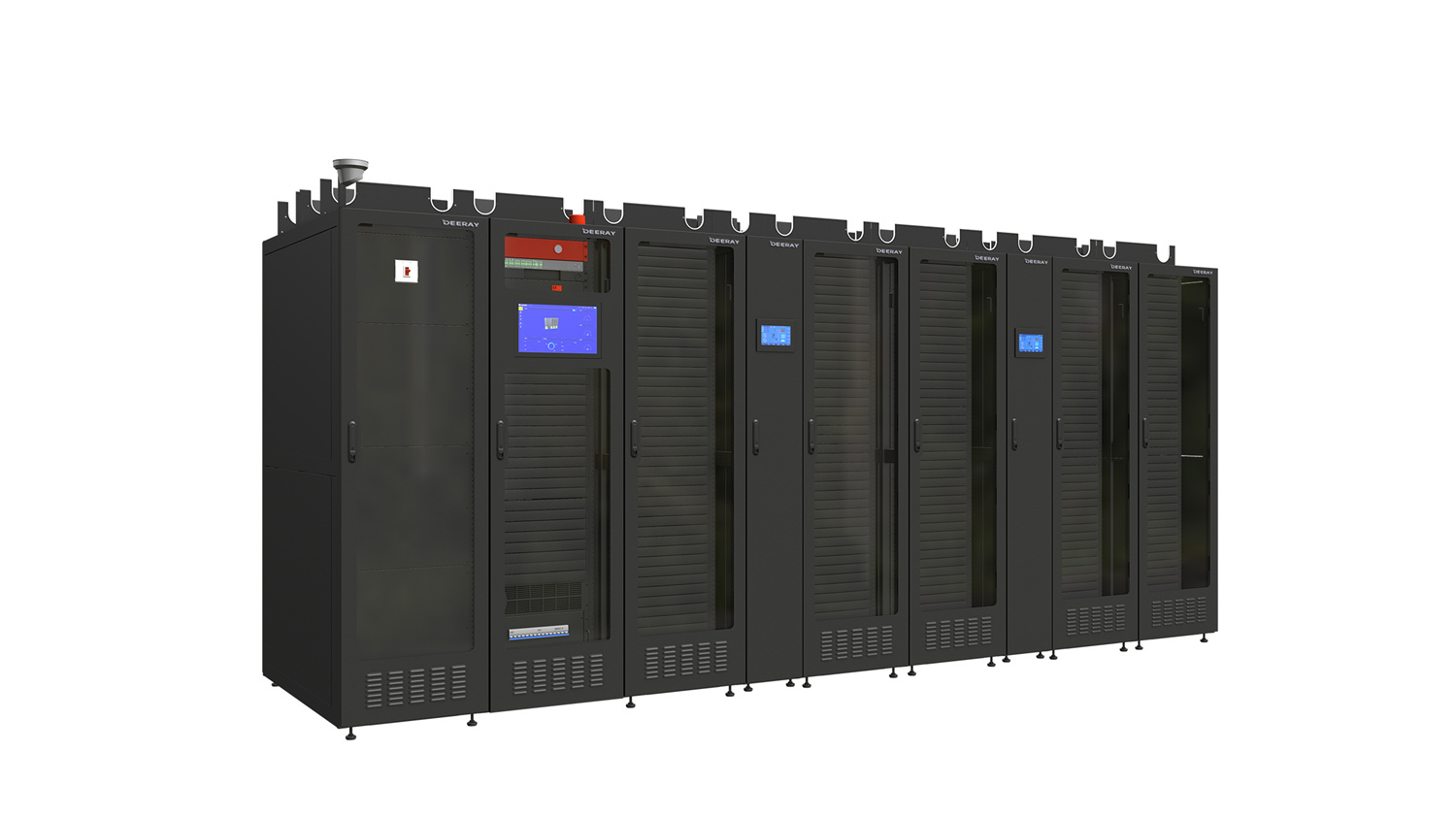

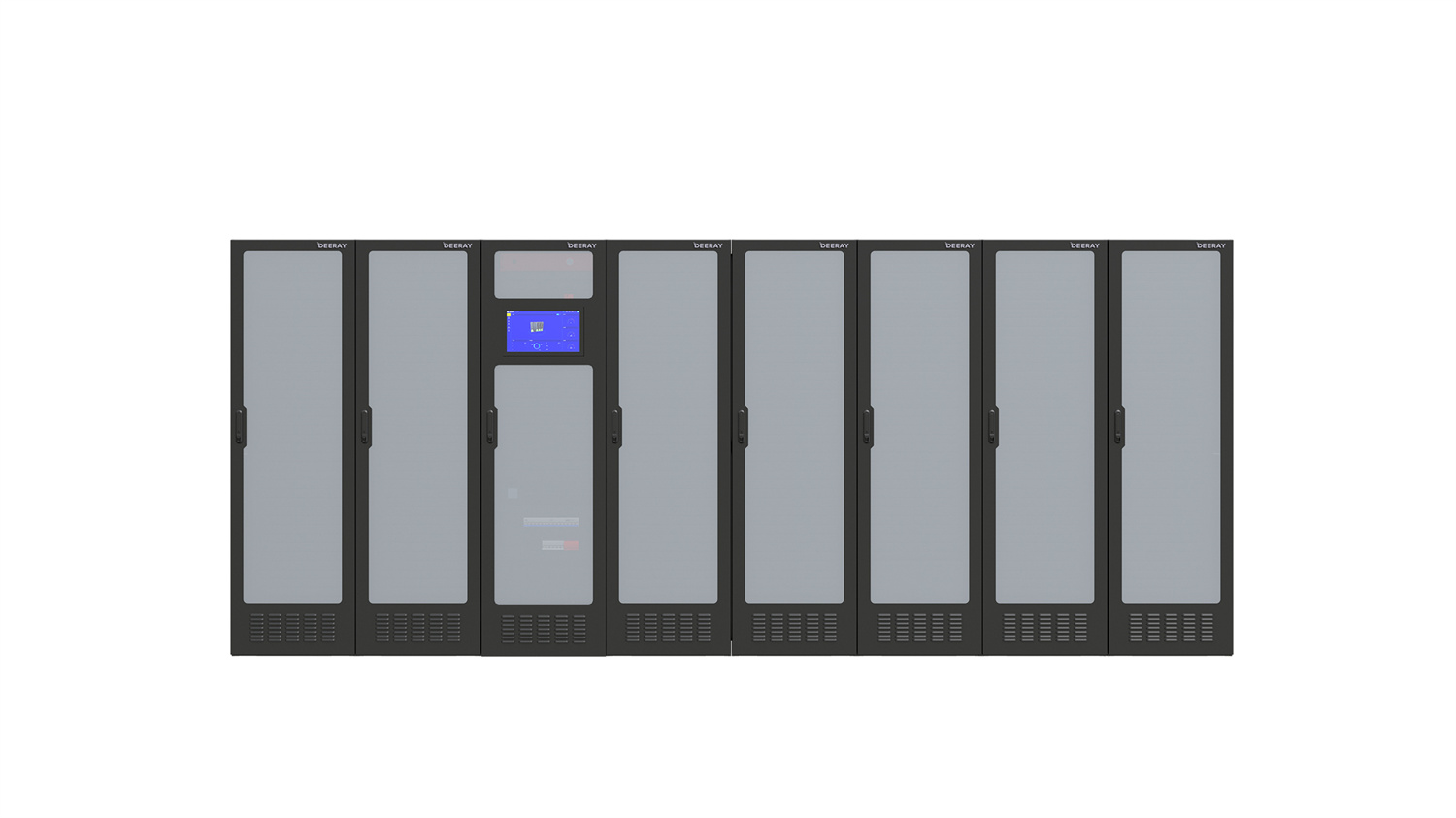

Deeray series integrated cabinet solution integrates UPS, air conditioner, power distribution module, power and environment monitoring system, temperature and humidity detection, light and access control in a standard 19-inch server cabinet. All equipment is pre-installed and pre-commissioned in the factory. The on-site installation is easy and convenient, which can realize rapid deployment, occupy less area, and comes with remote web interface monitoring function, which can realize remote operation and maintenance of a site.

◆ 2m standard cabinet, with larger 43U capacity;

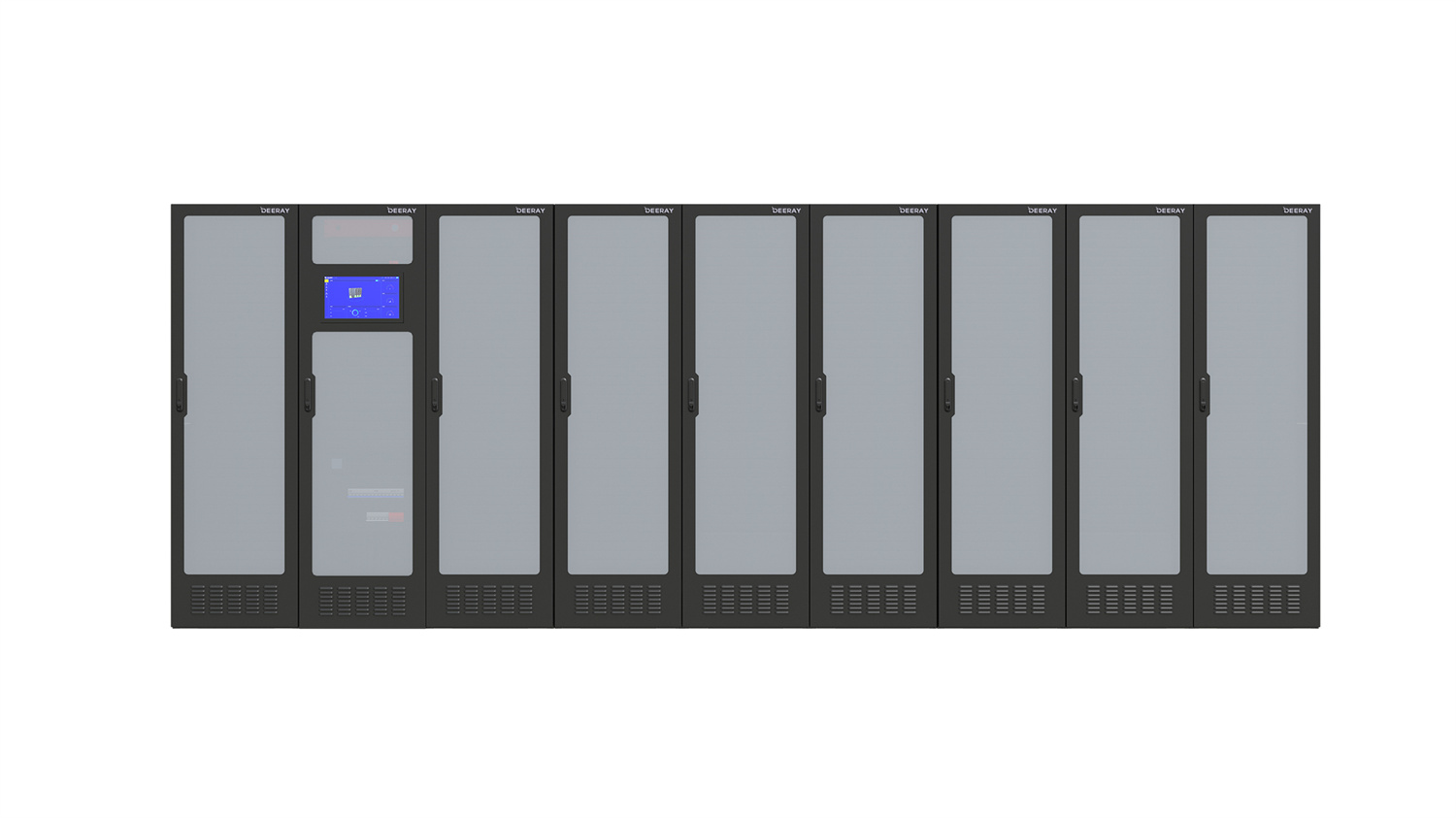

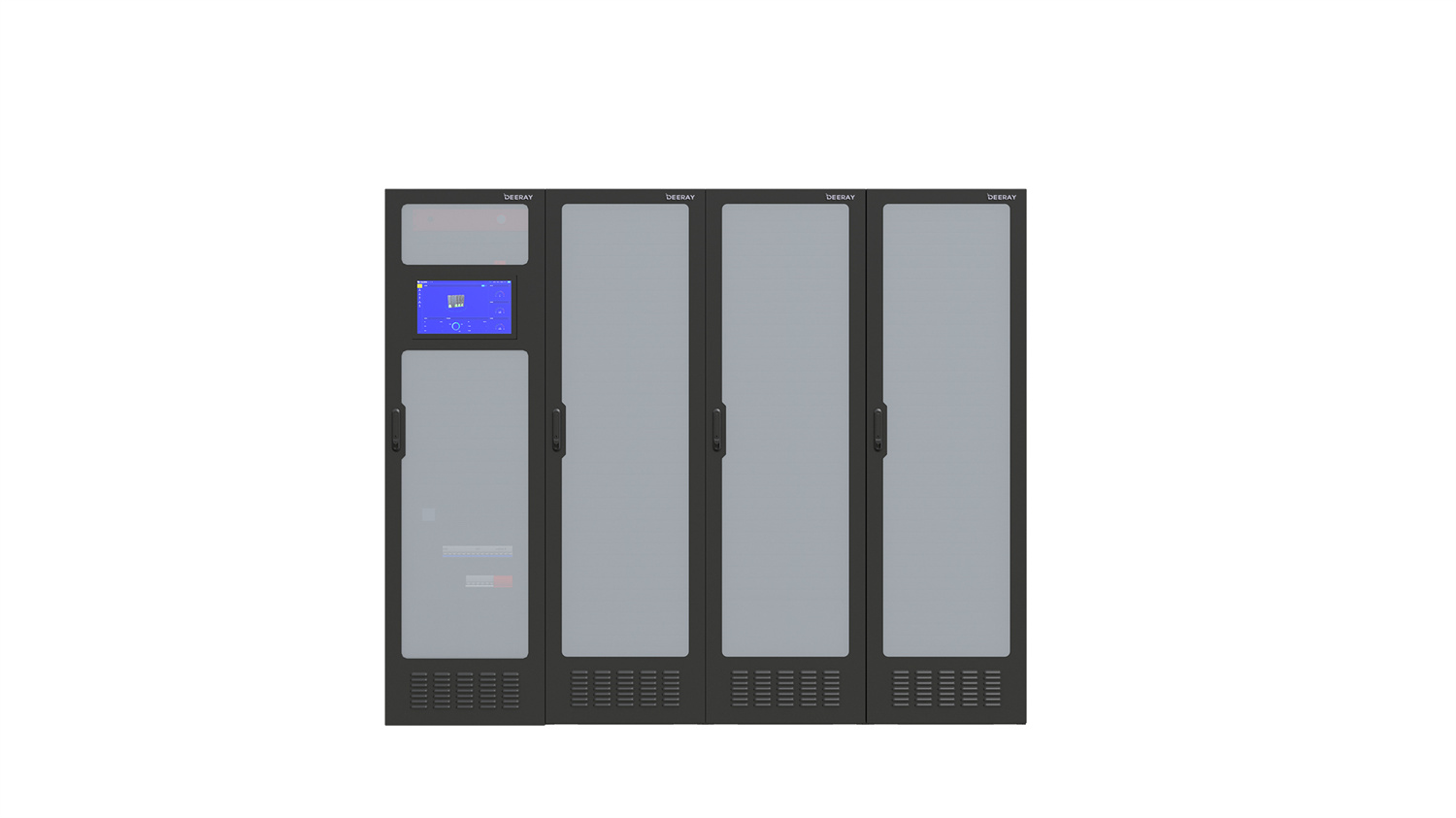

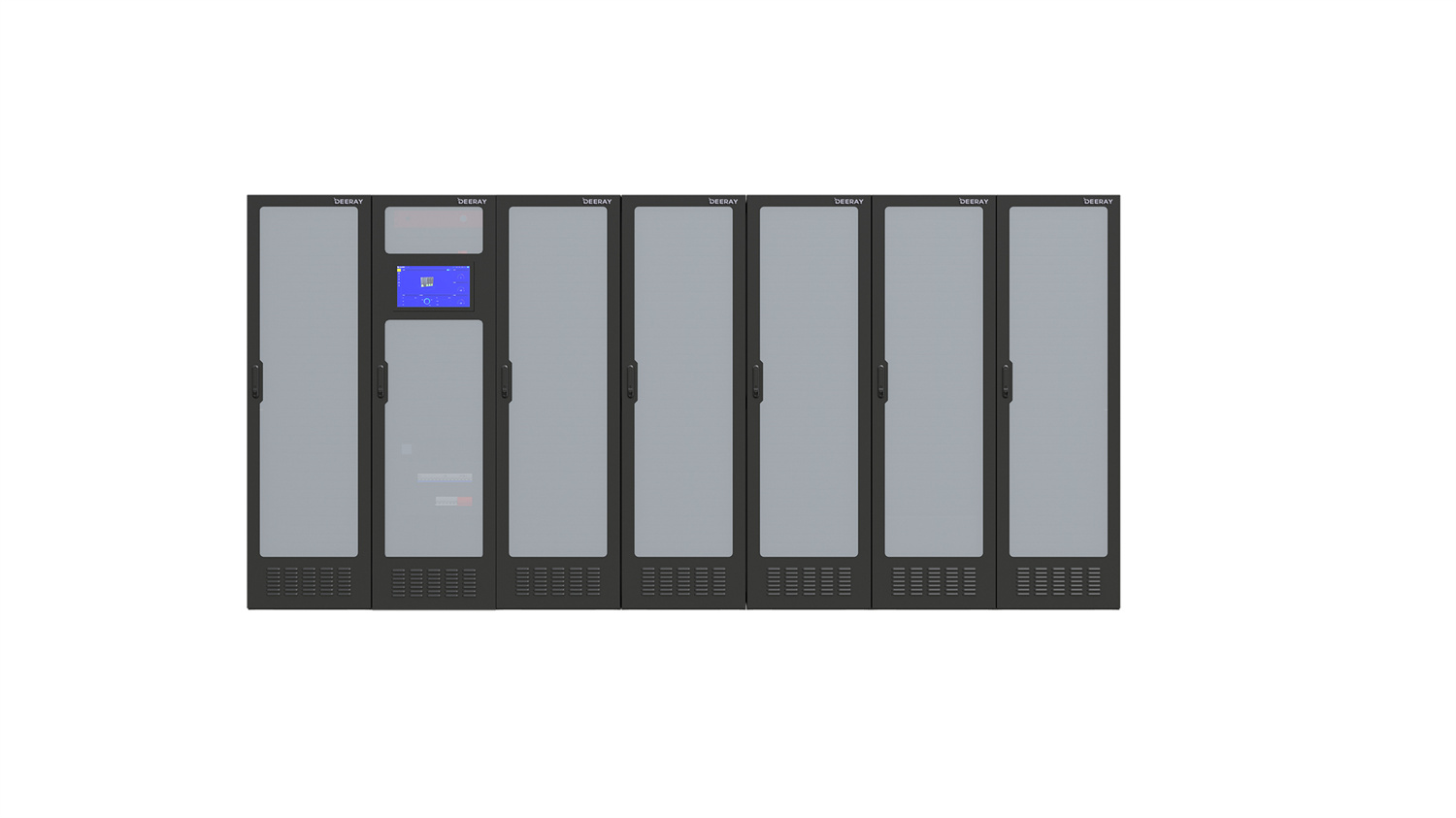

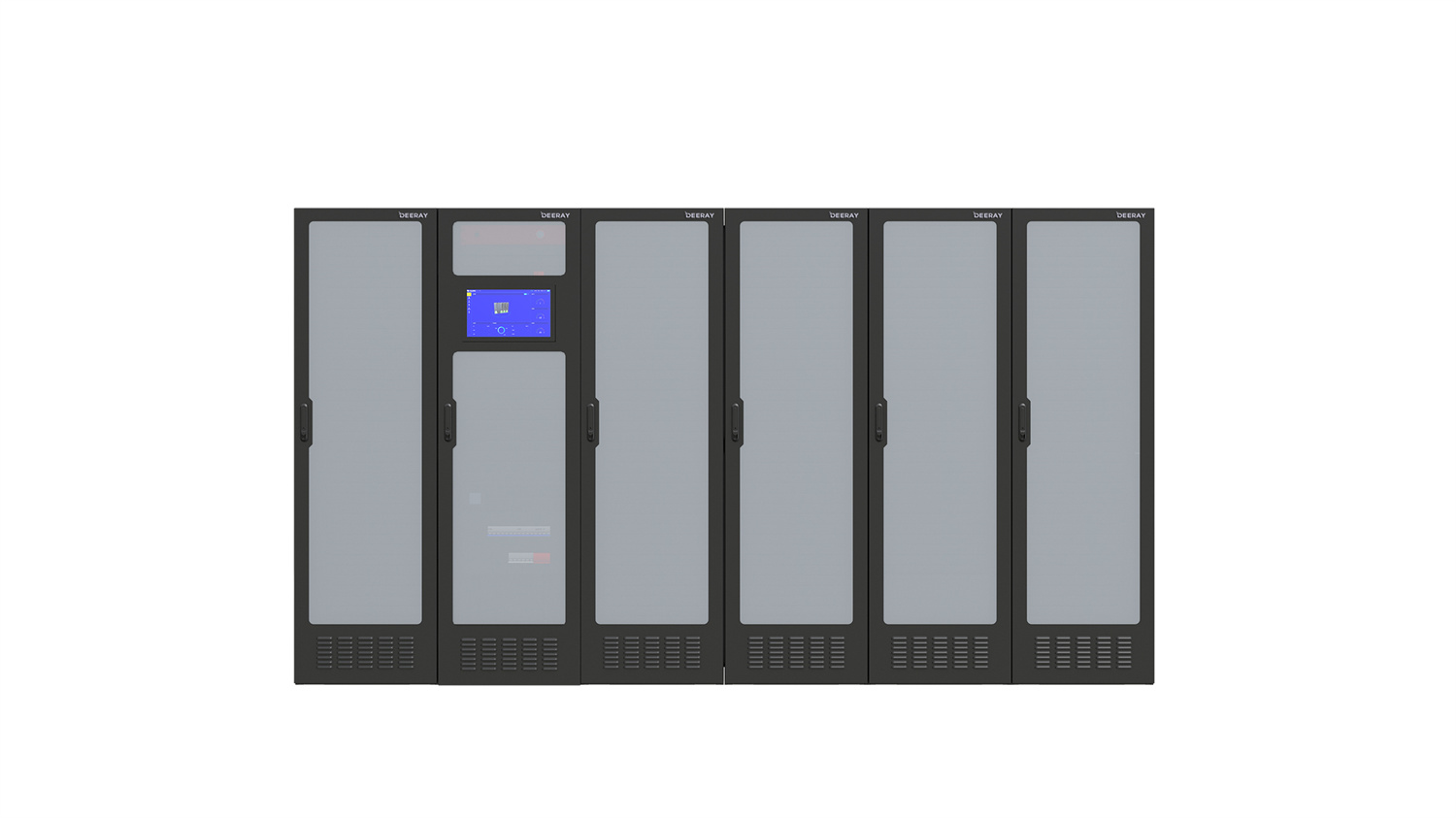

◆ Support 1 trailer (1-8) cabinet merging;

◆ No additional channel components are required, and cabinets are directly coupled and assembled,Forming a "cold and hot double channel and double closed" system;

◆ It can be installed on the cement floor, and is applicable to the machine room without elevated floor;

◆ Ultra wide voltage application range: 138~485V;

◆ Ultra wide temperature application range: - 40~55 ℃.

Download: PDF JPG

Features
Specification Details

Safe and reliable

All components follow domestic and international standardized production standards to ensure product quality.Pre-installation, pre-commissioning and other process are controlled at various levels to ensure product installation and operation safe and reliable.A single cabinet is a complete system, suitable for various complex scenes (dust, narrow space, no insulation measures, etc.).Integrated design, overall delivery, avoid system design problems.The emergency cooling fan can delay the aisle overheating and reserve time for data backup.

The cabinet integrates an intelligent monitoring system to ensure the safe and reliable operation of the computer room.

High eﬃciency and energy saving

Proximal refrigeration, high-eﬃciency power supply, and the overall annual average PUE of single cabinet ≈ 1.30. The power distribution, UPS, monitoring, and refrigeration cabinets are integrated to save space.Engineering free design, free decoration and wiring, remote operation and maintenance are not on duty, saving TCO.

Easy installation and rapid deployment

Modular design of power distribution, easy installation and maintenance.Rack-mounted air conditioner indoor unit, pipe thread connection, easy maintenance.The computer room does not need special decoration treatment, and the equipment is ready to use. Installation and commissioning cycle only need 3 hours.A single cabinet is a complete system, which can be easily and quickly expanded to 4-5 cabinets side by side.

Intelligent management

The monitoring system is extensible and compatible with third-party monitoring systems; friendly HMI.Support local and remote WEB interface access, SMS alarm function.

DR-10(30KVA 1+4) Configuration List
No.	Item	Component Name	Specification	Size	Single Set Usage	Unit	Total Required Sets
Cabinet System (System/Basic Cabinets)
1	Sealed Cabinet	Cabinet	Sheet metal frame cabinet 1 top cover plate 1 (bottom wiring, top plate opening) angle gauge4 (42U) depth support2 Windshield components 1 Bottom Cover 1 4 * load-bearing pyramids/set	600×2000×1200	1	Piece	1
2		Single Front Glass Door	Single-layer Front glass door + Class A anti-flame PVC colorless transparent panel door (reserved display installation position), equipped with welding reinforcement. three-way door access control with spring * 1 electric lock switch Button * 2 Wire routing beam×1 LCD display screen cover*1	600×2000×1.5×5mm （Tempered Glass）	1	Piece
3		Rear Double-Sided Door	Equipped with welding reinforcement, electric lock switch button with door spring * 2	600×2000	1	Set
4		Side Cover	Cabinet Side Cover	1200×2000	1	Piece
5		Cooling Tunnel Component Set	Windsheild, Seals and etc.	600×2000	1	Set
6		Lighting Components	Lighting Components with Switches * 2	600W	1	Set
7		Ambient Light	Blue	2000H	1	Set
8		Bottom Cover	Cabinet Bottom Cover with Drainage Holes	600×1200×1.2	1	Piece
9		Insulation Cotton	Thermal insulation cotton (200mm cooling Tunnel ) + sheet metal guard board	200×2000	2	Piece
10		Cable Management Board	Vertical Cable Management board	100×2000	2	Set
11		Wheels	4 pieces/set		1	Set
12		PDU Holder	2 Pieces/set		2	Piece
13		Side Cover	Side Cover for internal Structure	2000×1200×1.2	2	Piece
14		Blind Cover	1U Blind Cover	1U	10	Piece
15		Load Bearing Plate	Maximum 150Kg	1200D	1	Set
16		L Shape Holder	2 * L Shape Holder/per set	1200D	3	Piece
17		Ground copper bar		600W	1	Piece
18		Cabinet Parallel Kit			3	Set
Cabinet System （IT Cabinets)
1	Sealed Cabinet	Cabinet	Sheet metal frame cabinet 1 top cover plate 1 (bottom wiring, top plate opening) angle gauge4 (42U) depth support2 Windshield components 1 Bottom Cover 1 4 * load-bearing pyramids/set	600×2000×1200	1	Piece	4
2		Single Front Glass Door	Single-layer Front glass door + Class A anti-flame PVC colorless transparent panel door (reserved display installation position), equipped with welding reinforcement. three-way door access control with spring * 1 electric lock switch Button * 2 Wire routing beam×1 LCD display screen cover*1	600×2000×1.5×5mm （Tempered Glass）	1	Piece
3		Rear Double-Sided Door	Equipped with welding reinforcement, electric lock switch button with door spring * 2	600×2000	1	Set
4		Side Cover	Cabinet Side Cover	1200×2000	1	Piece
5		Cooling Tunnel Component Set	Windsheild, Seals and etc.	600×2000	1	Set
6		Lighting Components	Lighting Components with Switches * 2	600W	1	Set
7		Ambient Light	Blue	2000H	1	Set
8		Bottom Cover	Cabinet Bottom Cover with Drainage Holes	600×1200×1.2	1	Piece
9		Insulation Cotton	Thermal insulation cotton (200mm cooling Tunnel ) + sheet metal guard board	200×2000	2	Piece
10		Cable Management Board	Vertical Cable Management board	100×2000	2	Set
11		Wheels	4 pieces/set		1	Set
12		PDU Holder	2 Pieces/set		2	Piece
13		Side Cover	Side Cover for internal Structure	2000×1200×1.2	2	Piece
14		Blind Cover	1U Blind Cover	1U	10	Piece
15		Load Bearing Plate	Maximum 150Kg	1200D	1	Set
16		L Shape Holder	2 * L Shape Holder/per set	1200D	3	Piece
17		Ground copper bar		600W	1	Piece
18		Cabinet Parallel Kit			3	Set
Power Supply & Distributions
1	Power Distribution Cabinet	3/3 Phase（Delexi Brand） AC Power Input Surge Arrestor Surge Arrestor Breaker Maintenance Bypass Breaker UPS Input Breaker UPS Output Breaker Air-Conditioners Breaker PDU1 Breaker PDU2 Breaker DC Output Breaker	Rack-mounted intelligent single-phase input/one-way output power distribution function: 1. 8 sets detection customization and expansion available. 2. Detection of Input voltage, current, active power and power factor, load factor, harmonic Distortions 3. Detection of output switch voltage, current, power, load rate, electric energy and power factor 4. Detection of input and output switch status 5. Surge protection alarm detection 6. RS485, SNMP dry contacts sensors (such as temperature and humidity, smoke sensor, door sensor) 7. Buzzer and LED indicator		1	Piece	1
2	DC Power Distribution	16 Outlet DC Power Source Distribution		440×200×44mm/1U	1	Piece	1
3	DC Power	220Vac/12vdc/30A/360W	AC-DC：220Vac/12Vdc		1	Piece	1
4	PDU	Vertical Installation	Central Monitoring Intelligent PDU，16 Ports（C13），Metal Casing		1	Piece	5
4	PDU	Vertical Installation	Non-Intelligent PDU，16 Ports（C13），Metal Casing		1	Piece	5
5	UPS	30KVA/27KW	Online High Frequency 30KVA UPS, Output Power Factor 0.9, ±192Vdc with LCD screen, track-mount structure.		1	Piece	1
Cooling System
1	Air-Conditioners	17.6KW In-Row Precision Air-con	17.6kW Precision Air-Con, Inrow Installation. Single Cooling Only. Price including 1 indoor unit and 1 outdoor unit. Frequency Inverter Type with EC Cooling Fan automatic control. Integrated with internal cooling media temperature sensor and electronic expansion valve.	300×1100×2000mm/42U 800×420×1240mm	1	Piece	1
Environmental Monitoring System
1	Environmental Monitoring System	Environmental Monitoring System Host Machine	System has built-in SNMP-Link Monitoring software: SNMP-Link can manage the LAN data center infrastructure. Not only can the equipment network equipment connection and management be realized through the SNMP protocol, but also the equipment can be connected through RS485 or CANbus, and the expansion is very flexible. If allowed by the customer's network, remote access and management can be realized. (1) Power input plug C14 (2) IN1-8 input level detection (3) OUT1-4 dry contact output signal (4) TH1/2 two-way digital temperature and humidity sensor interface (5) 4 * RS485/232 interfaces (6) CANBUS interface (7) Network interface (8) SD memory port (built-in SanDisk card 8G memory high-speed TF card memory card) (9) USB peripheral power supply interface (10) Working indicator	440×80×44mm/1U	1	Piece	1
2	LCD Display	10 inch Color LCD Touch Screen		235×150×20mm	1	Piece	1
3	Network Switch	16 Port Network Switch		440×200×44mm/2U	1	Piece	1
4	Wifi Router	Provide Data Transfer between Monitoring System to LCD Screen			1	Piece	1
5	Temperature & Humidity Sensors	RS 485 Connection			1	Piece	5
6	Smoke Sensors				1	Piece	5
7	Water Leakage Sensors	Zone Sensing Sensor Sets with detection cables , 2.5m			1	Piece	5
Others
	Auxiliary material				1	Set	5
Optional Accessories （Price not included)
1	STS	Static Transfer Switch			1	Piece	1
2	Fire Extinguisher Module	Fire Extinguisher Module	heptafluoropropane	440×650×132mm/3U	1	Piece	1


Note: Configuration does not include Batteries
