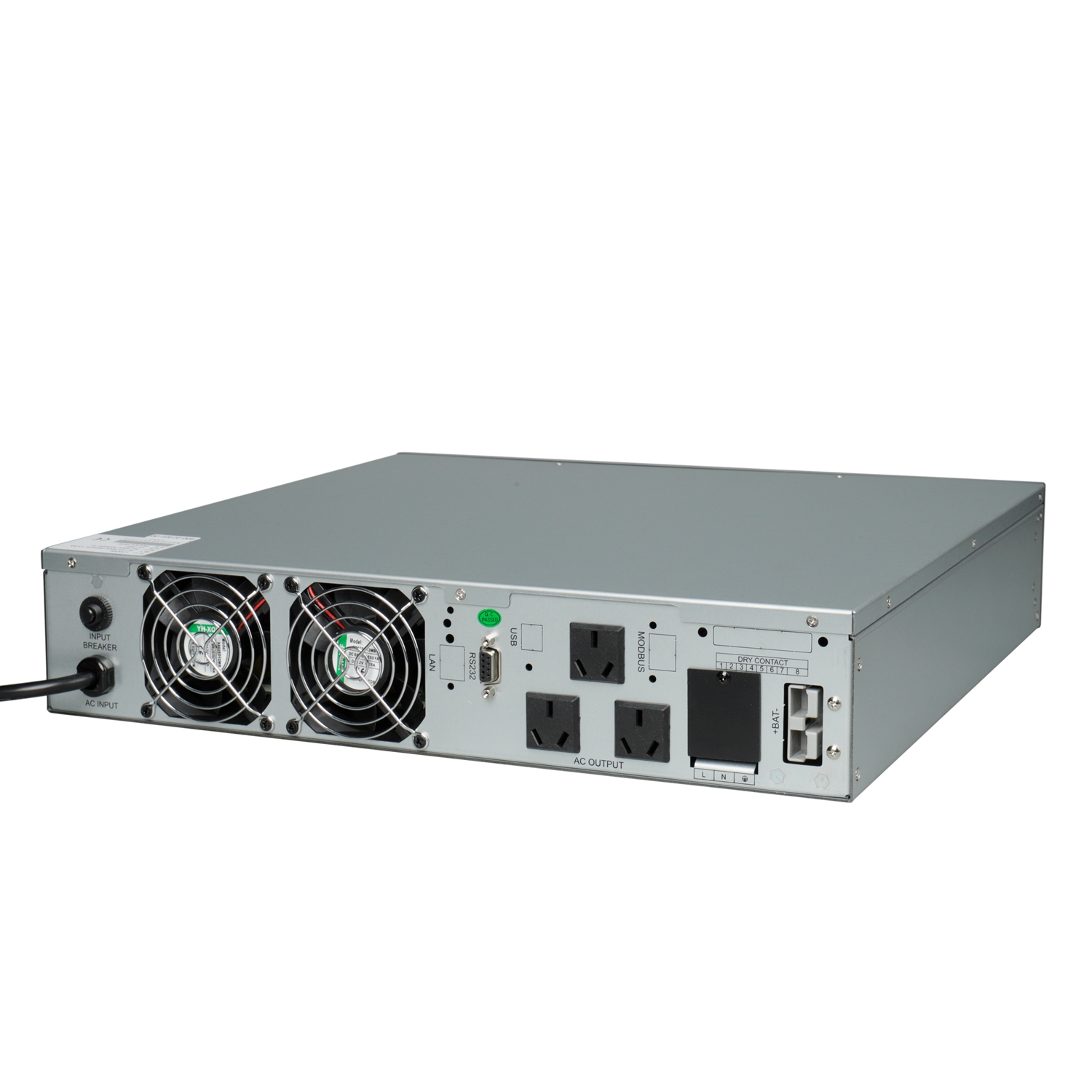

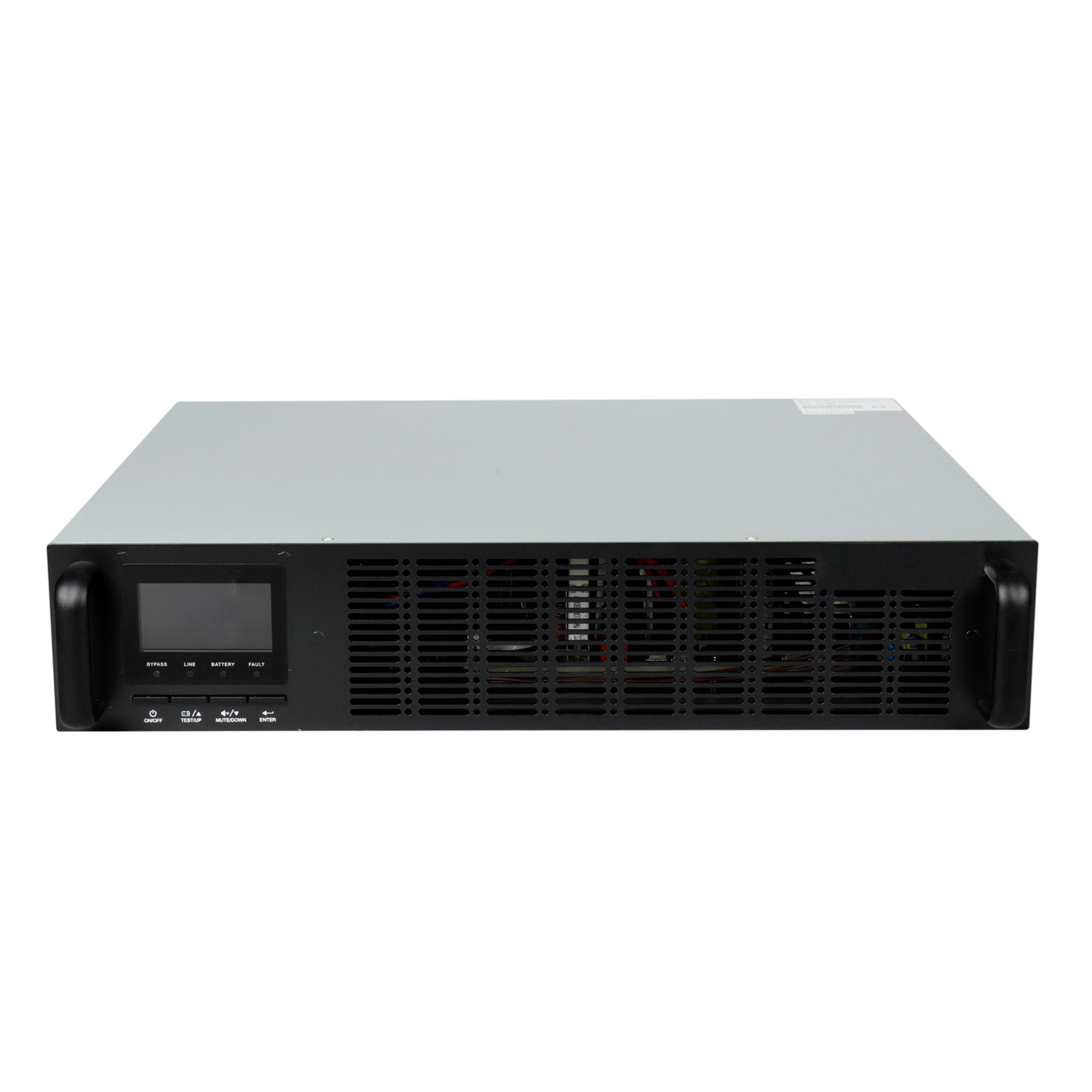

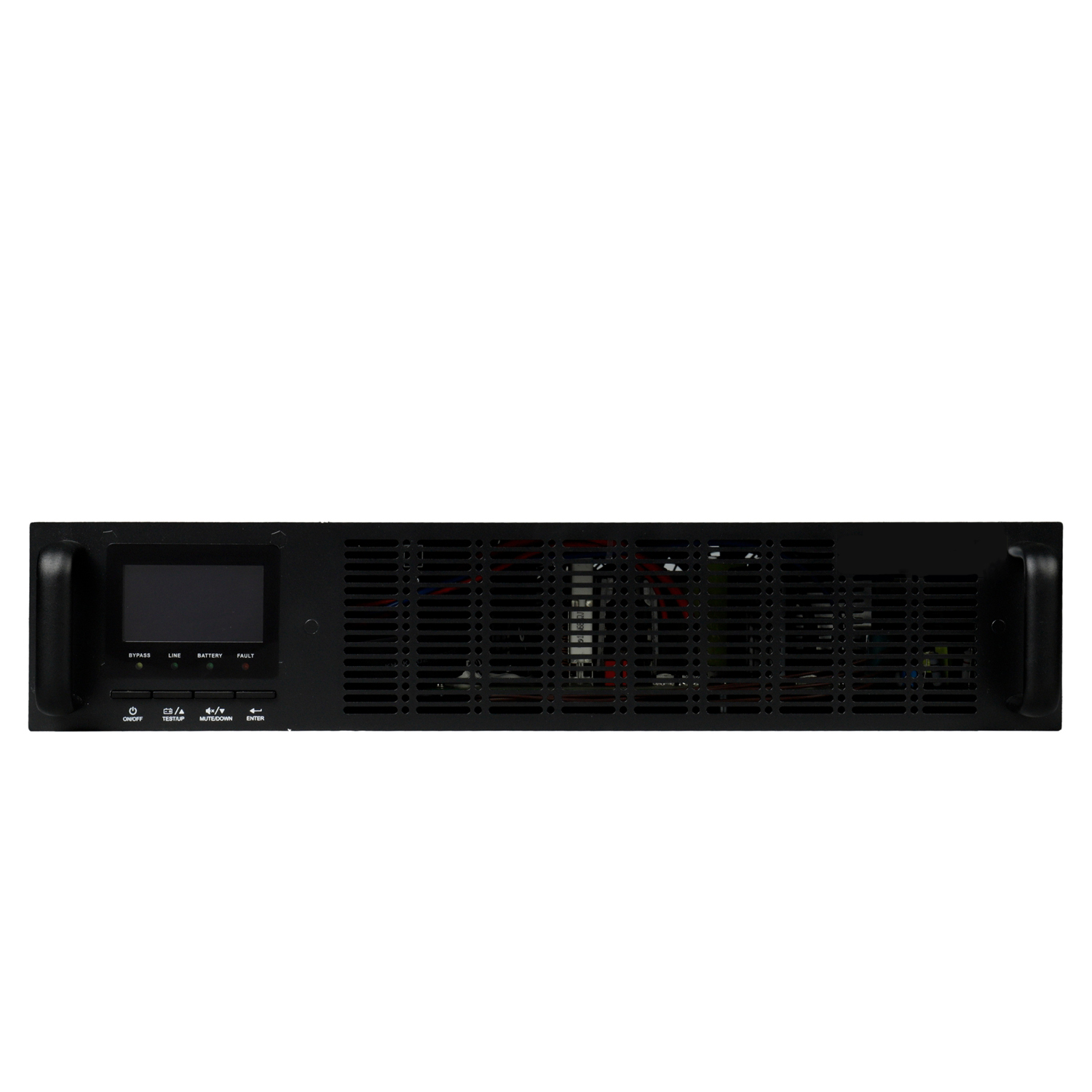

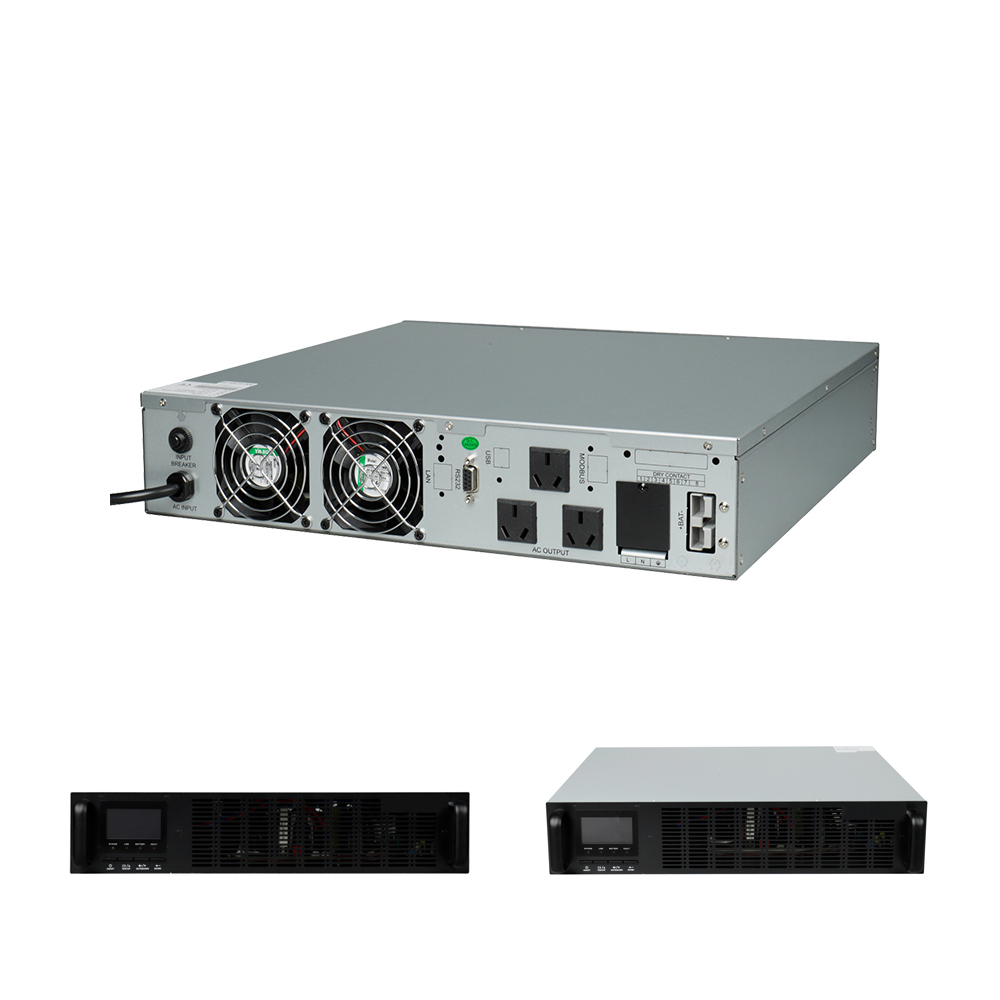

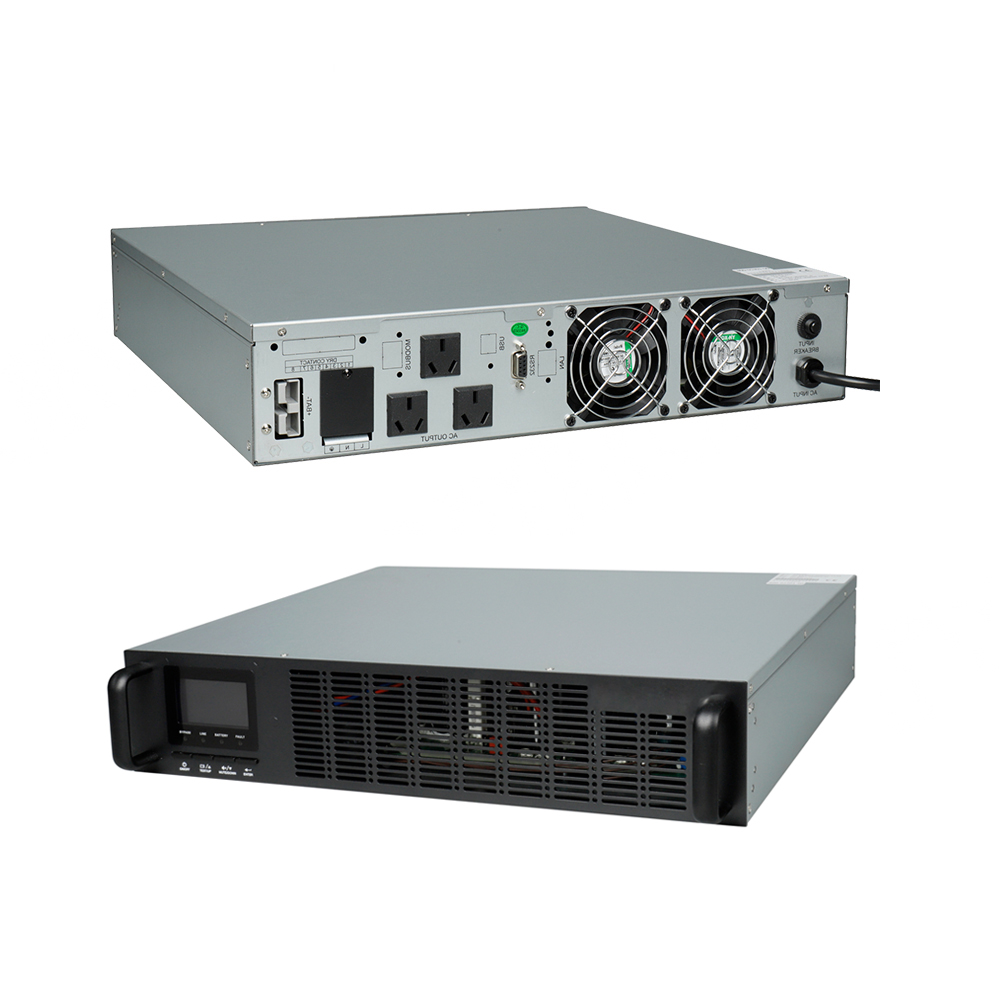

C1K-C3K Rack-Mounted Online UPS

Deeray series rack type UPS is online double conversion topology uninterruptible power supply with outstanding performance and provide reliable power to the critical equipment of customer. It can work perfectly in harsh utility environment, eliminate all kinds of disturbances in utility power and provide high quality and precise pure sinewave output to protect the precious equipment of customer.

Download: PDF JPG

Features
Specification Details

Feature：

Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.

DSP Digital Control Based

Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply.

Ultra Wide Input Mains range

Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life

Best Loading Capability

Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application

Genset Compatible

Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

High Input power factor

Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer

Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion

Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system

Specification：

Model		C1KR	C1KRS	C2KR	C2KRS	C3KR		C3KRS
Capacity	VA/W	1kVA/800W		2kVA/1.6kW		3kVA/2.4kW
Topology		Double Conversion Online UPS
Phase		Single Phase Input Single Phase Output
Mains Input	Wiring	L/N+PE
	Rated Voltage	208/220/230/240VAC
	Voltage Range	90~300VAC
	Frequency Range	40Hz-70Hz
	Input Power Factor	≥0.99
AC Output	Wiring	L/N+PE
	Output Voltage	208/220/230/240VAC
	Voltage Regulation	±1%
	Output Frequency	50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
	Waveform	Pure Sine Wave
	Distortion (THDV%)	<2%(Linear Load)
		<7%(None-Linear Load)
	Over load capability	1Min@105%~125%Rated Load 30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load
Efficiency	AC/AC Mode	88%		89%		90%
	DC/AC Mode	86%		87%		88%
Battery & Charge	Rated Battery Voltage ^①	24VDC Internal	36VDC External	48VDC Internal	72VDC External	48VDC Internal			96VDC External
	Battery Capacity	12V/7AH X2pcs	External Battery Depends	12V/7AH x4pcs	External Battery Depends	12V/9AH x4pcs			External Battery Depends
	Backup Time	>6mins @ Half Load		>6mins @ Half Load		>6mins @ Half Load
	Charging Current	Standard Model with Internal Battery:1A Long Backup Time Model :4A
Physical	Chassis Style	Rack-Mounted
	Rack Dimension	1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery
	Weight (kg)	13	8.5	18.5	11.5		21.9	12
HMI	LCD DISPLAY	Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
	Standards Communication Interface	1. RS232 PORT
	Optional Extension Card	2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping
Operating Environment Endurance	Temperature range	-10~50^oC
	Relative Humidity	0-98%（Non-condensing）
	Acoustics Noise	<55dB @ 1 meters
